● Input voltage: 12-24VDC
● Output type: PWM constant Voltage
● Output current: 4CH, 5A/CH
● Output power: 240-720W
● Grey levels: 4096/CH
● Dimming range: 0-100%
● Remote distance: 30m
● Working temperature: -30℃~55℃

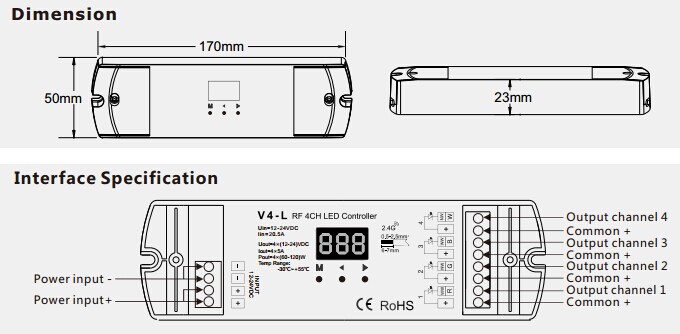

● Product size: L170×W50×H23mm
● Packing size: L172×W53×H27(mm)
● Net weight: 125g
● 4CH PWM constant voltage controller with digital numeric display and easy key operation.
● Can work under Stand-alone mode or RF mode.
● Under Stand-alone mode(no need remoter), can set as 1ch dimmer, 4ch dimmer, dual color controller or RGB/RGBW controller.
● Under RF mode, full compatibility with a variety of single color dimming, dual color and RGB/RGBW remoters.
● PWM achieve 4096 levels flicker-less dimming.
● When control RGB/RGBW lamp, built in 30 change mode optional.
● Adopt 2.4GHz wireless technology, can accept up to 10 remoters control.
● Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.
● Work with power repeater to expand output unlimitedly.
● One receiver can transmit the signal another receiver, so the remote control distance can be beyond 100m.
