DMX512 Master Controller XC-D

zoom
  • Features
  • Specifications
  • User Manual
  • Related products
Technical parameter
● Input voltage: 85-265VAC
● Output signal: DMX512
● Output channel number for different light type:
   1/4/8 Zone Dimmer: 1/4/8
   1/4/8 Zone Dual color: 2/8/16
   1/4/8 Zone RGB: 3/12/24
   1/4/8 Zone RGB+W: 4/16/32
   1/4/8 Zone RGB+CCT: 5/20/40
   Multi-pixel RGB/RGB+W/RGB+CCT: 512
● Working temperature: -30℃~55℃

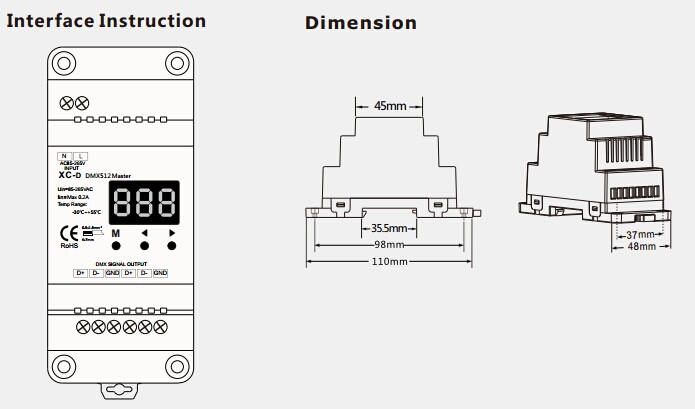

● Dimension: L115×W48×H67mm
● Weight: 70g

Summay
● Din-rail DMX master, which receives RF signal from remoter, and sends international standard DMX512/1990 signal to DMX512 decoders, so that the DMX controller can be remote controlled.
● Can be set as 1/4/8 zone single color, dual color, RGB, RGB+W, RGB+CCT light type by key,and match the same type 1/4/8 zone remoter optional.
● Digital numeric display, simple to change mode, speed, brightness, color temperature.
● Can connect more than one constant voltage or constant current DMX decoder, or direct control LED lamps with DMX decode chip.
● Adopt 2.4GHz wireless technology, can accept up to 8 remoter control.
● For RGB or Multi-pixel RGB type, built in 30 or 32 change mode, adjustable speed and brightness.
