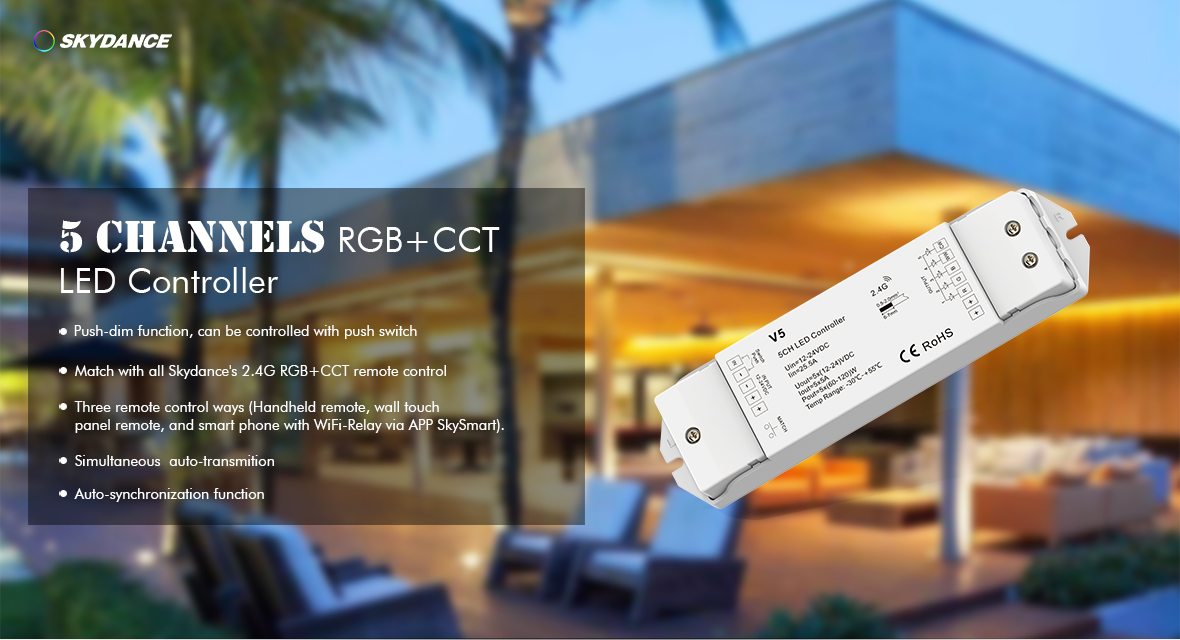

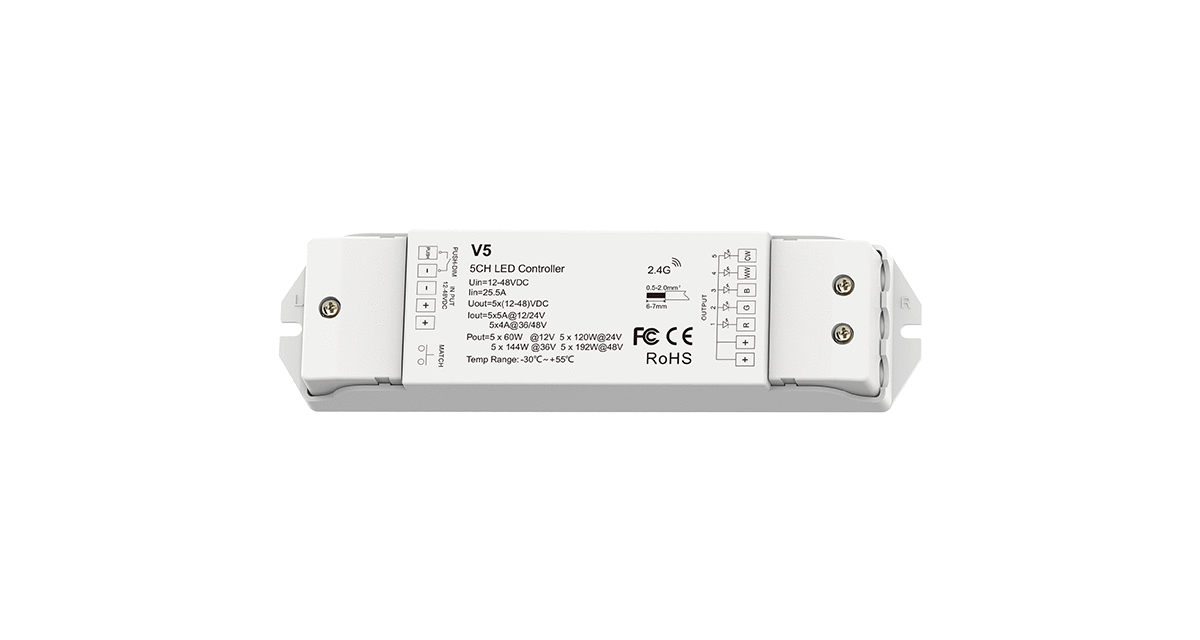

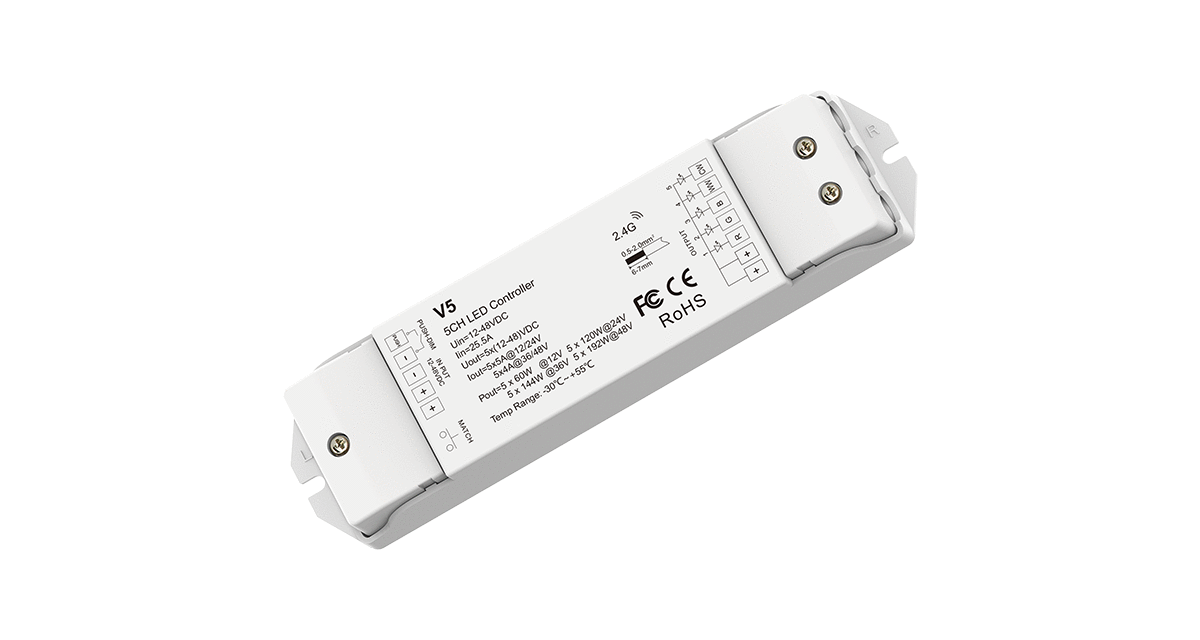

5CH 4A Constant Voltage RF 2.4G Receiver V5

  • Features
  • Specifications
  • User Manual
  • Related products
Technical Parameters
● Input voltage: 5-36VDC
● Output type: PWM constant voltage
● Output current: 5CH, 4A/CH
● Output power: 5 x (20-144)W
● Light type: RGB+WW/NW, DIM5
● Grey levels: 4096/CH
● Dimming range: 0-100%
● Remote distance: 30m
● Working temperature: -30℃~55℃

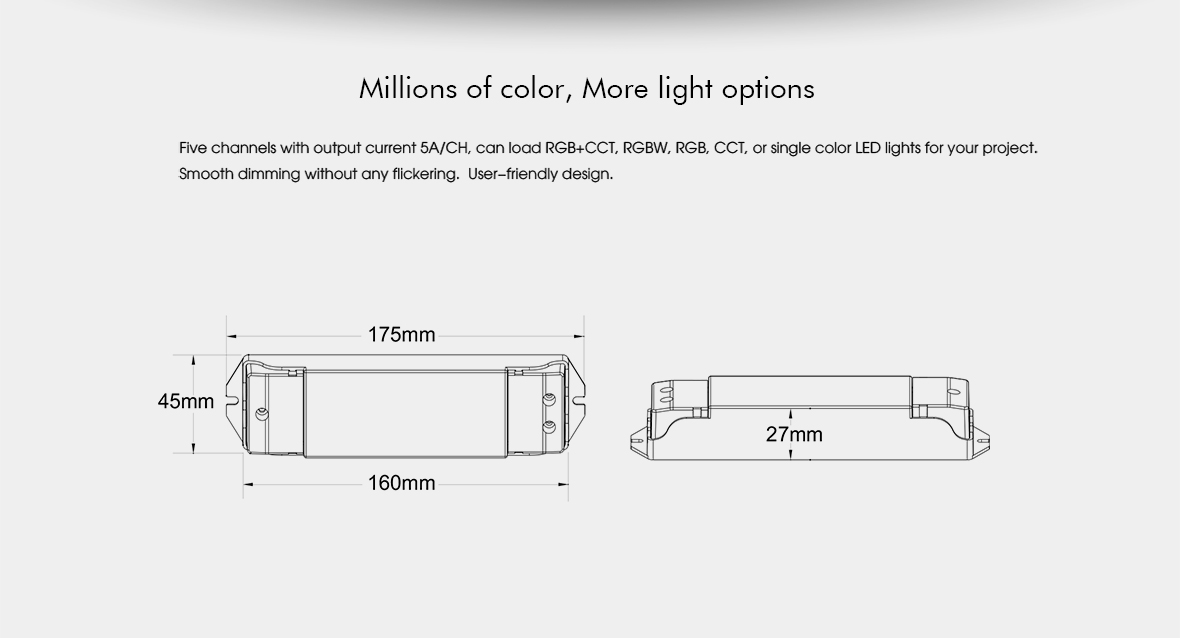

● Product size: L170×W50×H23mm
● Net weight: 102g

● 4A 5CH PWM constant voltage controller.
● Default as RGB+WW/NW controller, need match RGB+CCT remoter,adjustable color temperature, create colorful static or dynamic effect.
● Can also be used as 5 channel dimming controller when match 5CH dimming remoter.
● Full compatibility with a variety of RGB+CCT remoters.
● PWM achieve 4096 levels flicker-less dimming.
● Built in 30 RGB change mode optional, adjustable speed and brightness.

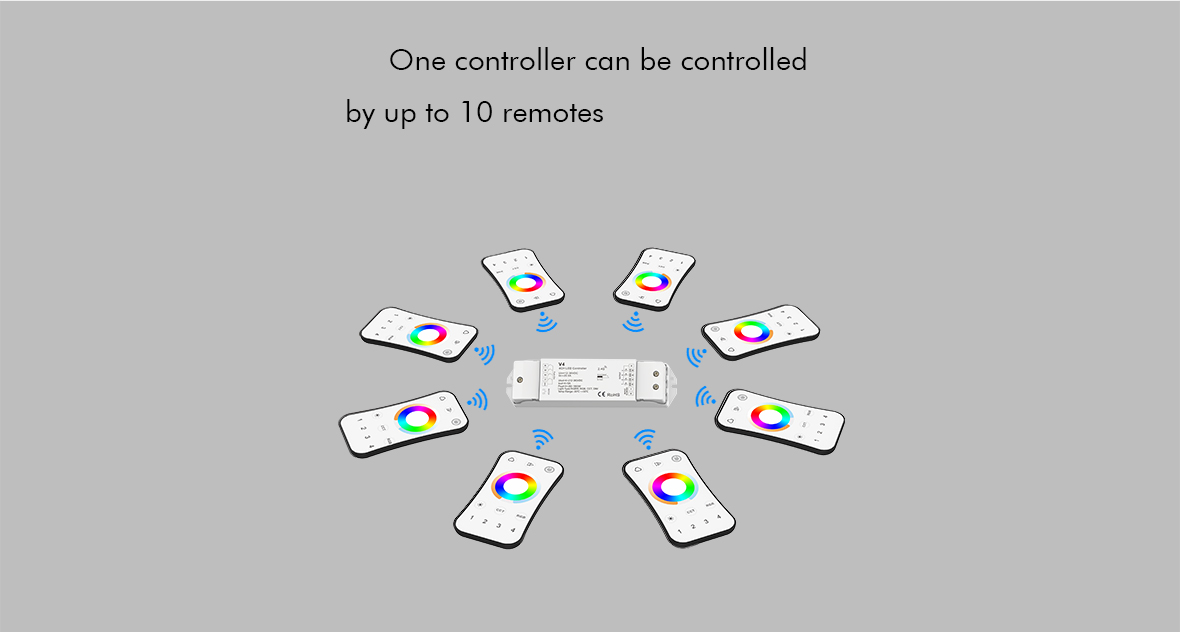

● Adopt 2.4GHz wireless technology, can accept up to 10 remoters control.

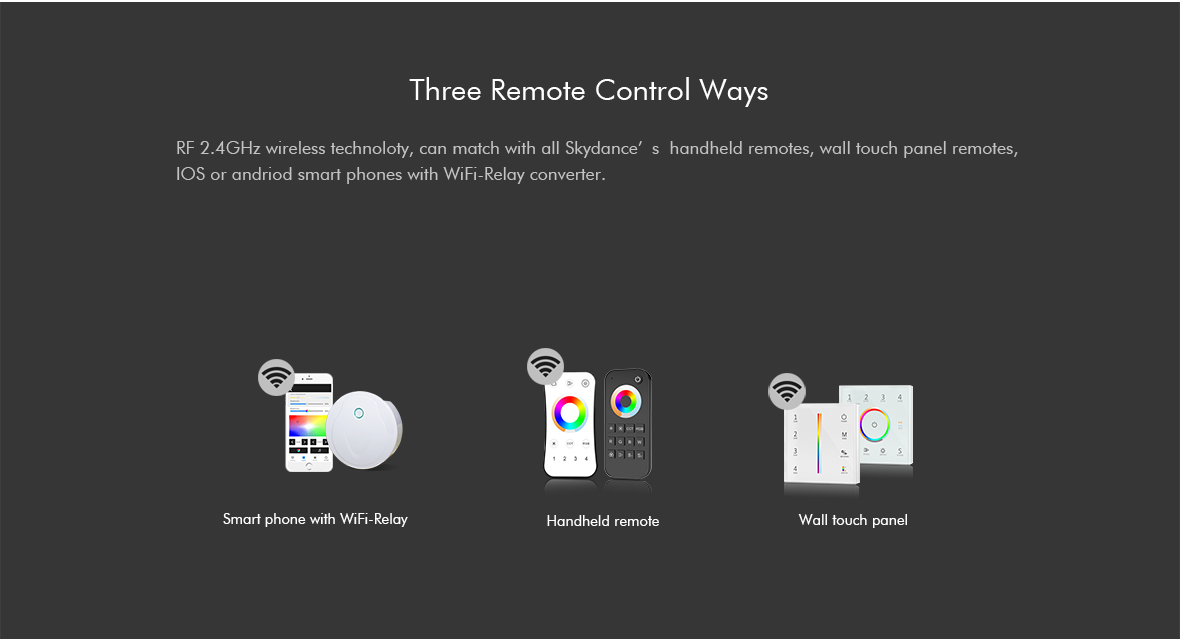

● Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.

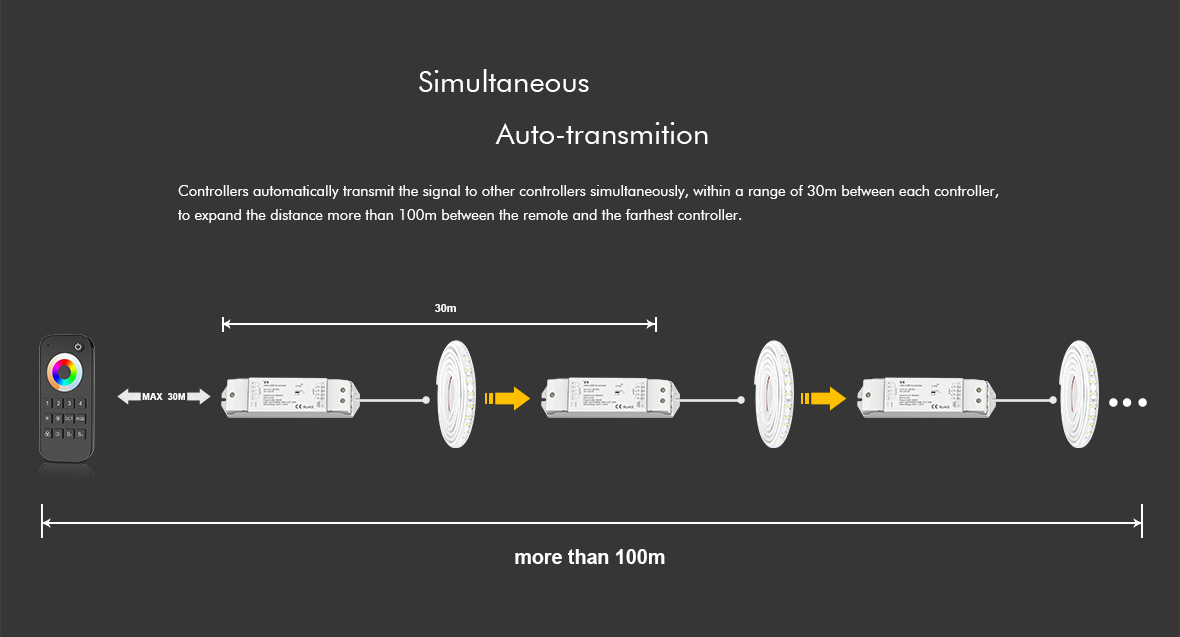

● Work with power repeater to expand output unlimitedly.
