● Input voltage: 5-24VDC
● Output type: PWM constant voltage
● Output current: 3CH, 10A/CH
● Output power: 3 x (50-240)W
● Grey levels: 4096/CH
● Dimming range: 0-100%
● Remote distance: 30m
● Working temperature: -30℃~55℃
● Product size: L110×W74.5×H24.5mm
● Net weight: 215g

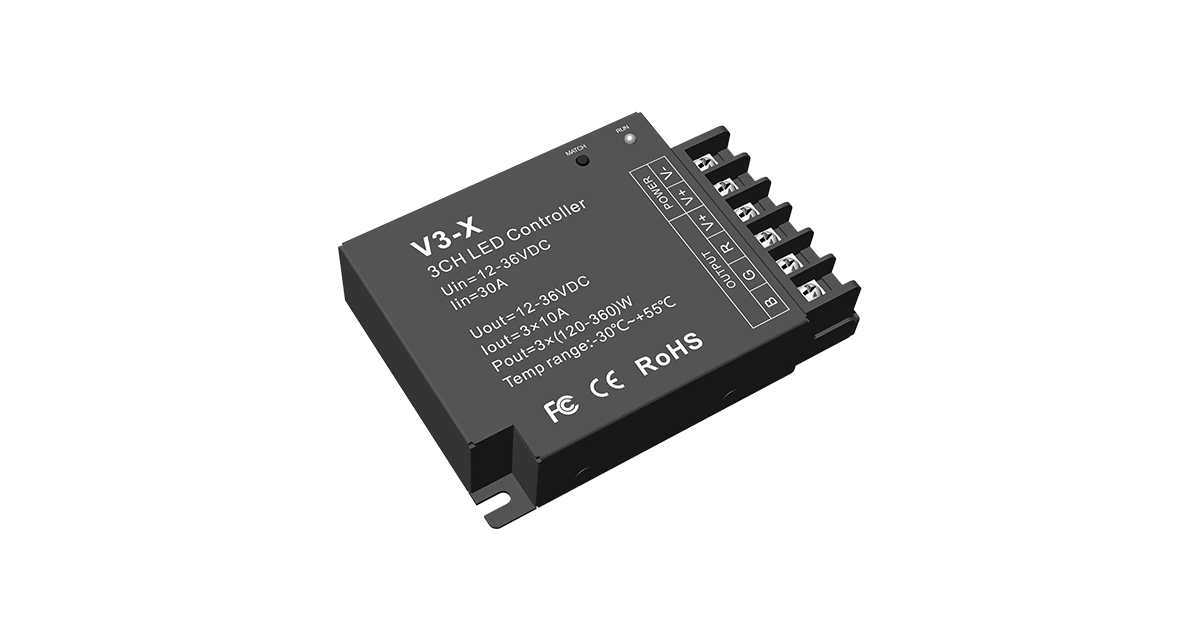

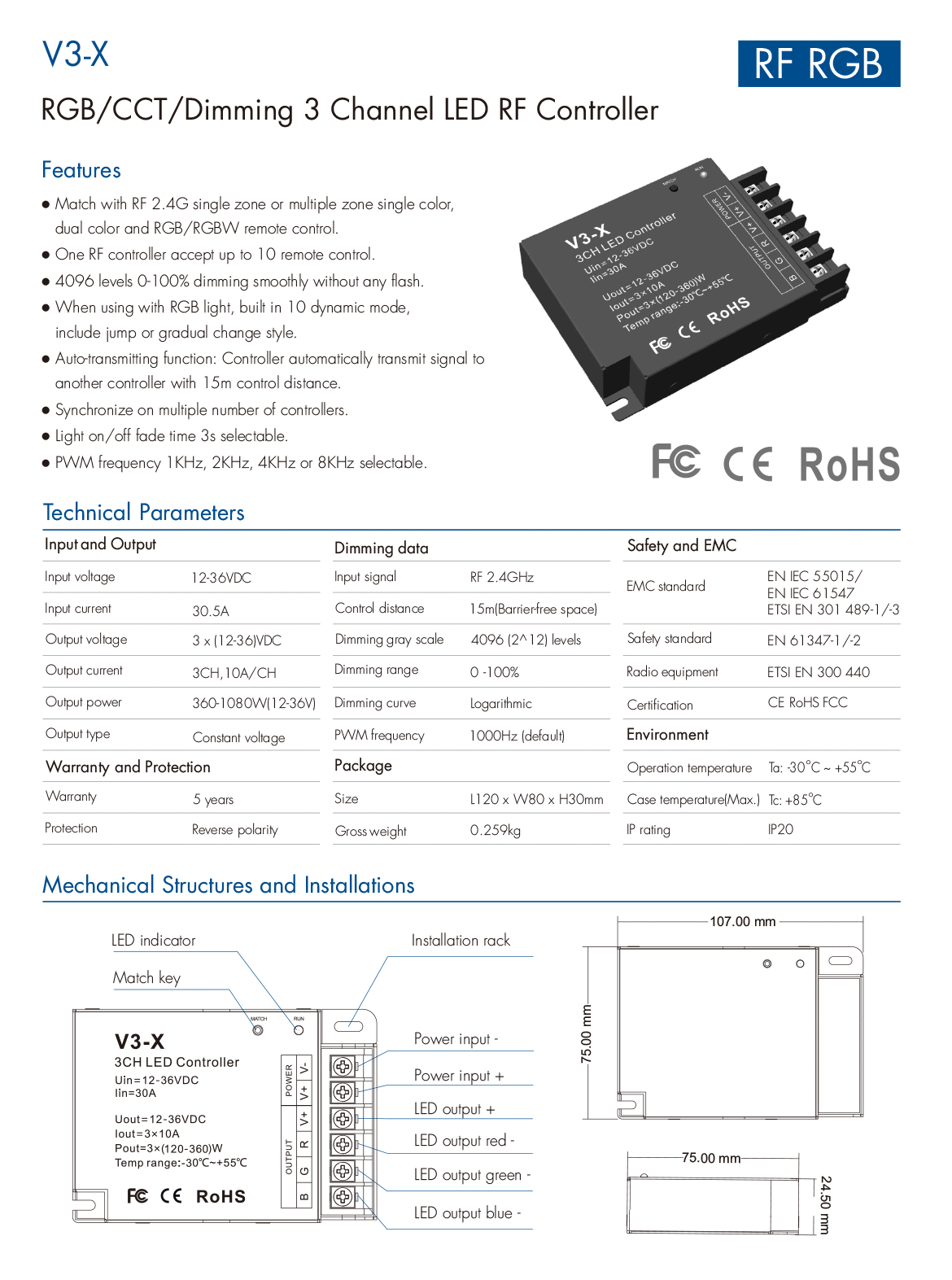

● 10A 3CH PWM constant voltage controller.
● Default as RGB controller, need match RGB remoter,create colorful static or dynamic effect.
● Can also be used as color temperature or dimming controller, good compatibility.
● Full compatibility with a variety of single color, dual color and RGB remoters.
● PWM achieve 4096 levels flicker-less dimming.
● When control RGB lamp, built in 10 change mode optional.
● Adopt 2.4GHz wireless technology, can accept up to 10 remoters control.
● Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.
● Work with power repeater to expand output unlimitedly.
