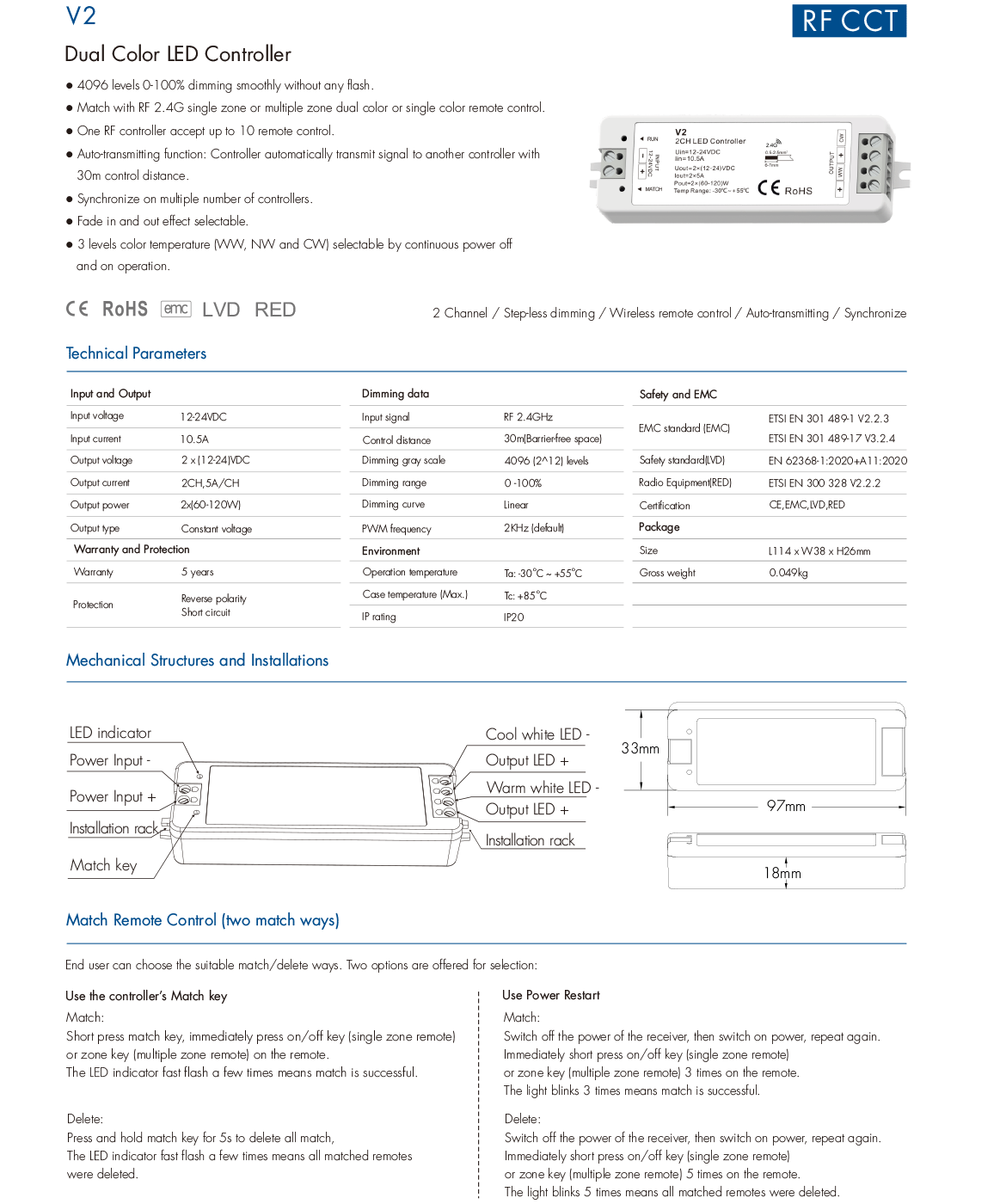

2CH*5A 12-24VDC CV Controller V2

zoom

Technical parameter

Model: V2 Input: 12-24VDC

voltage Output: 2CH,5A/CH

current Output: 2 x (60-120)W

power Output type: Constant voltage

Size(mm): 97x33x18


Summary

● RF controller with 2 channel PWM constant voltage or constant current output.

● Default as dual color(WW/CW) controller, need match dual color RF remote.

● Can also be used as single color dimming controller, strong compatibility.

● Smooth dimming and switch without any flickering.

● Full compatibility with a variety of single color, dual color RF remote.

● Adopt 2.4GHz wireless technology, remote distance up to 30m, one receiver can accept up to 10 remote control.

● Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.

● Work with power repeater to expand output unlimitedly

● One receiver can transmit the signal another receiver, so the remote control distance can be beyond 100m.
