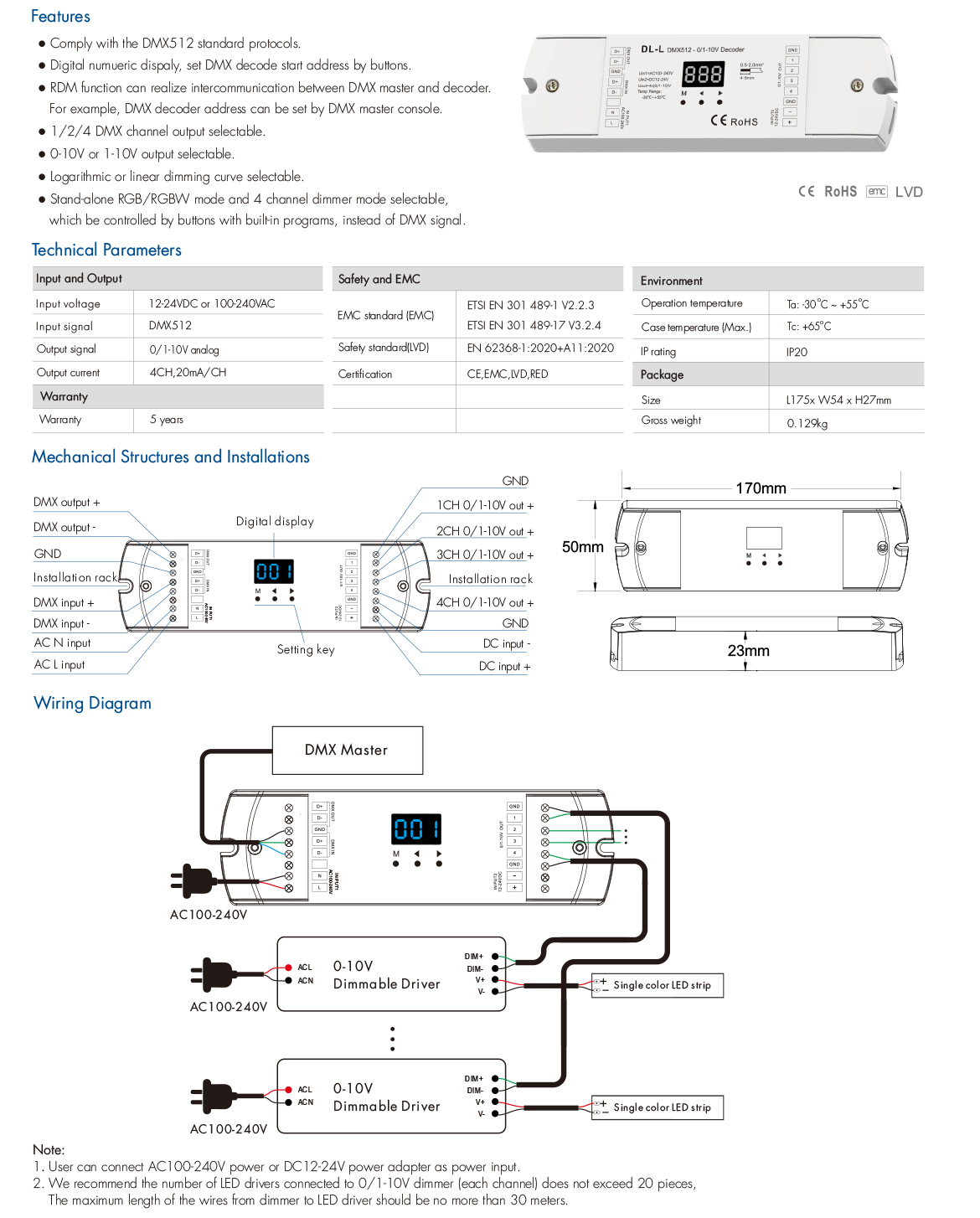

4CH Constant Voltage 0/1-10V DMX512 Decoder DL-L



● DMX512 to 0/1-10V signal decoder with digital display.

● 4 channel 0/1-10V analog signal or 5V / 10V PWM signal (need customize) output.

● Connect with 0/1-10V input dimming driver, such as 0-10V dimmable power supply.

● DMX decode mode / Stand-alone RGB/RGBW mode / Stand-alone 4 channel dimmer mode.

● Standard DMX512 compliant interface, DMX address display, set DMX address freely.

● Comply with the latest DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2006 ESTA Standard) standard protocols.

● RDM bi-directional communication function, can realize intercommunication between DMX master and decoder. for example, you can set DMX decoder address by DMX master console.

● Compatial with our DMX master and any high quality DMX master from other supplier.

● Under stand-alone RGB/RGBW controller mode, have 24 kinds mode, include static color, jump or gradual change style, adjustable speed and brightness.

● Under stand-alone 4 channel dimmer mode, each channel adjust brightness independently, and save up to 8 groups brightness.

● 1/2/4 DMX channel decode optional.

● 0-10V or 1-10V output optional.

● High or low PWM frequency optional.

● Log or linear dimming curve optional.

● For DL, din rail or screw mounted optional.
