RGB+CCT LED Strip Controller Set V5-M + R17

zoom
  • Features
  • Specifications
  • User Manual
  • Related products

Summary

● Mini style controller with 5 channel constant voltage output (R/G/B/WW/CW).

● RGB+CCT controller, need match RGB+CCT remote, create colorful static or dynamic effect.

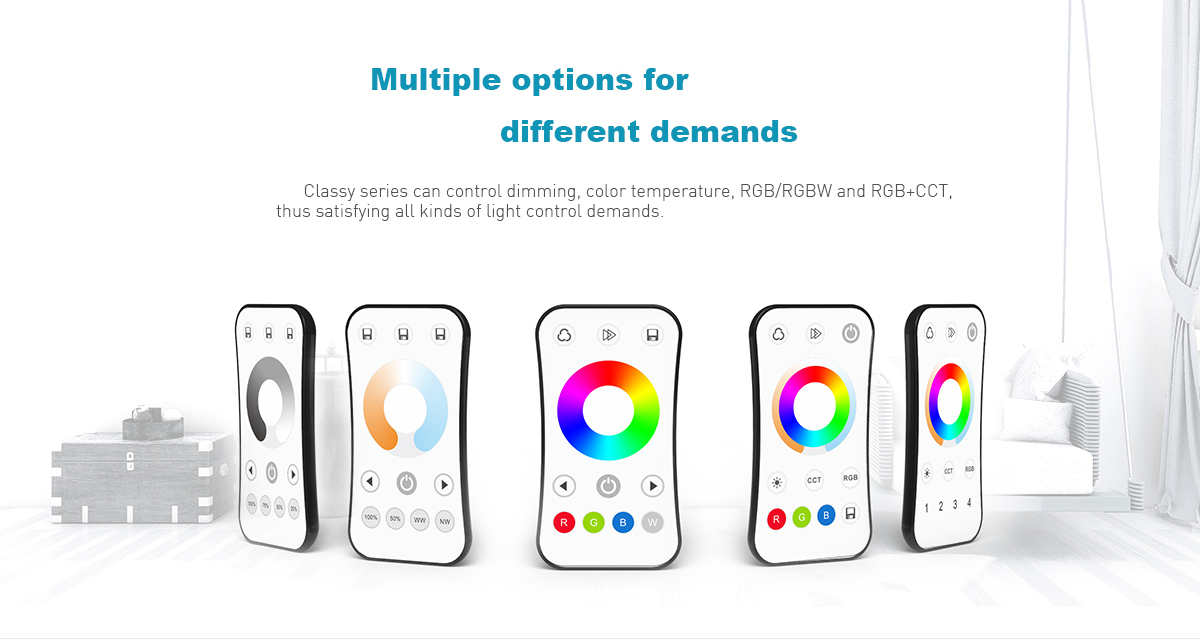

● Full compatibility with a variety of RGB+CCT remote.

● Smooth dimming and switch without any flickering.

● Built in 10 mode, include jump or gradual change style.

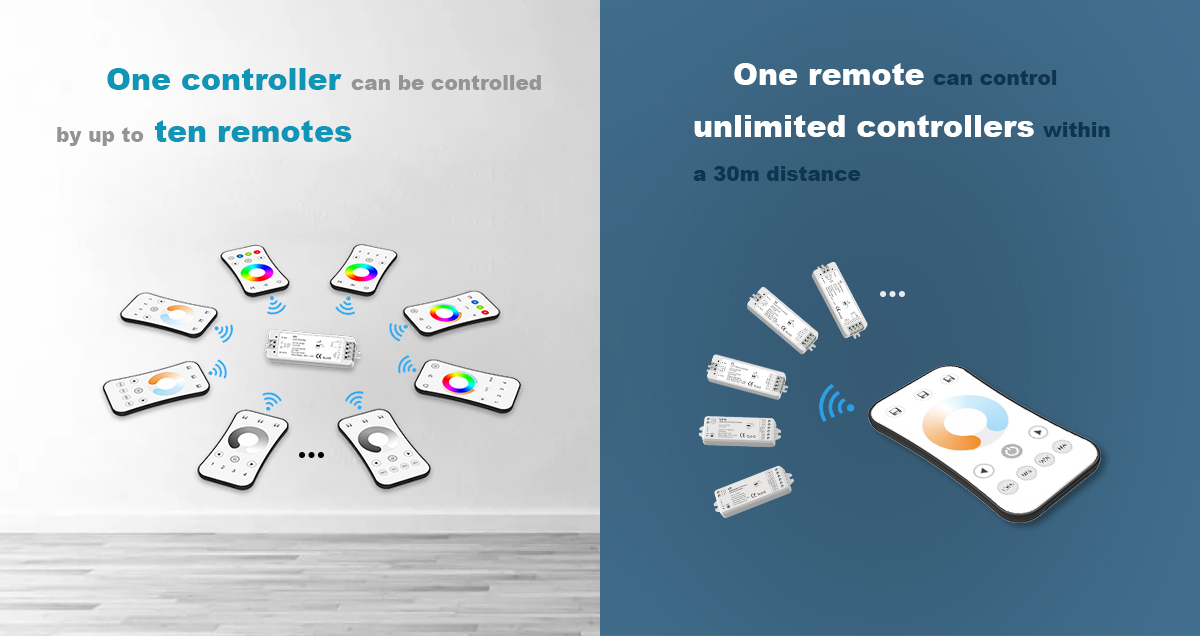

● Adopt 2.4GHz wireless technology, can accept up to 10 remote control.

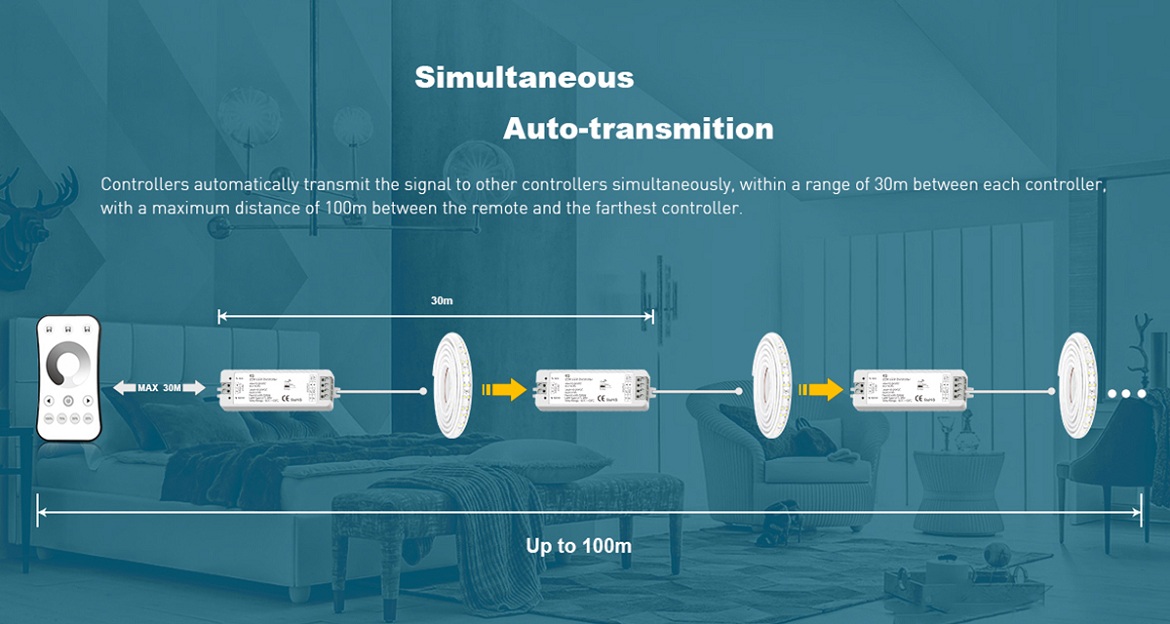

● Auto-transmitting function, one receiver can transmit the signal from the remote to another receiver within 15m, so the remote control distance can be beyond 100m.

● Auto-synchronization function, different receivers can work synchronously when they are controlled by the same remote, under same dynamic mode and same speed.

● Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.

● User can customize own RGB change mode list by APP for advanced function.

● Work with power repeater to expand output unlimitedly.

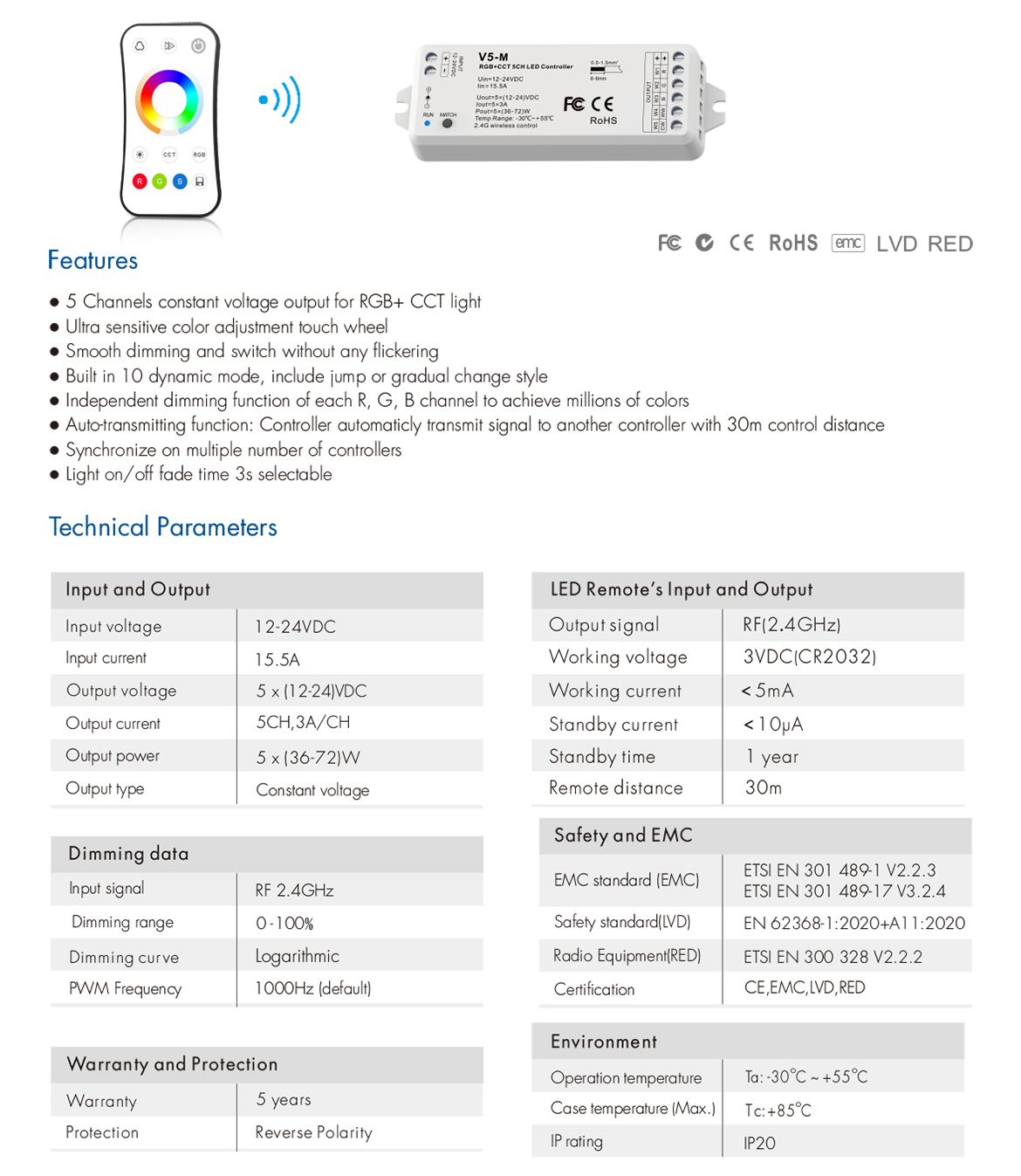

Technical parameter

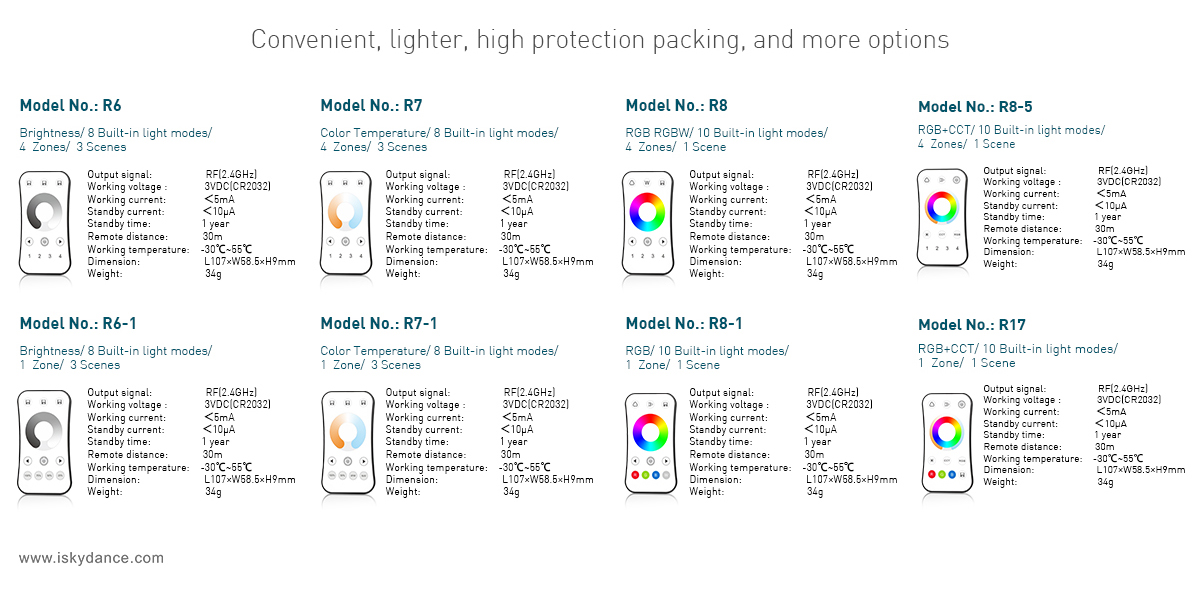

LED Remote

● Output signal: RF(2.4GHz)

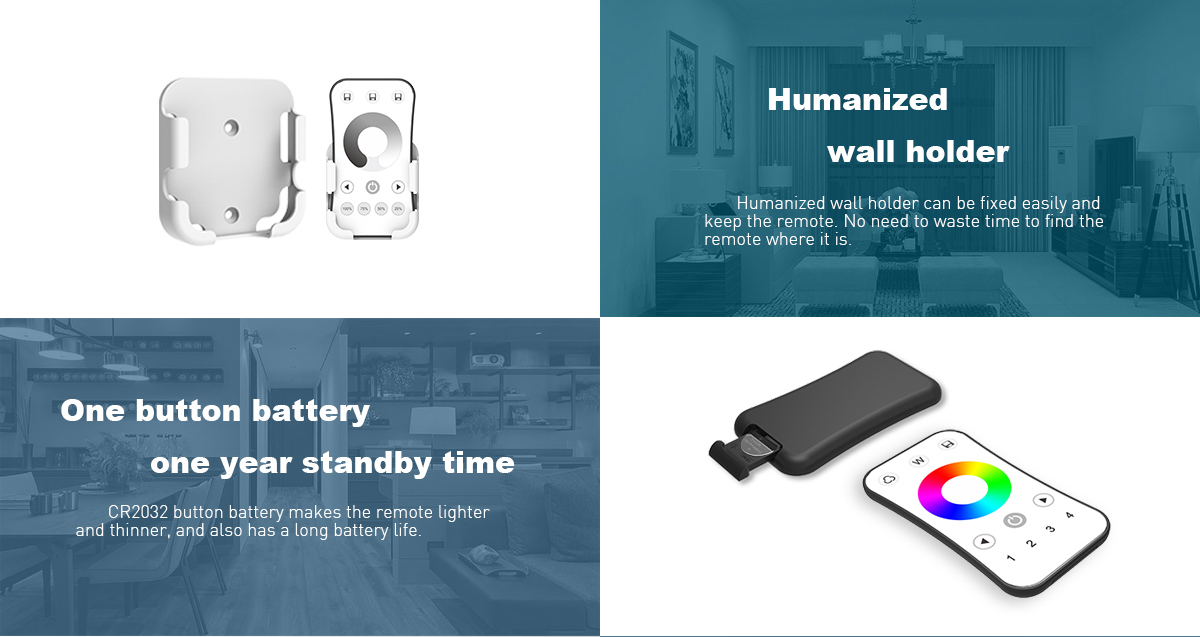

● Working voltage : 3VDC(CR2032)

● Standby time: 12 months

● Remote distance: 30m

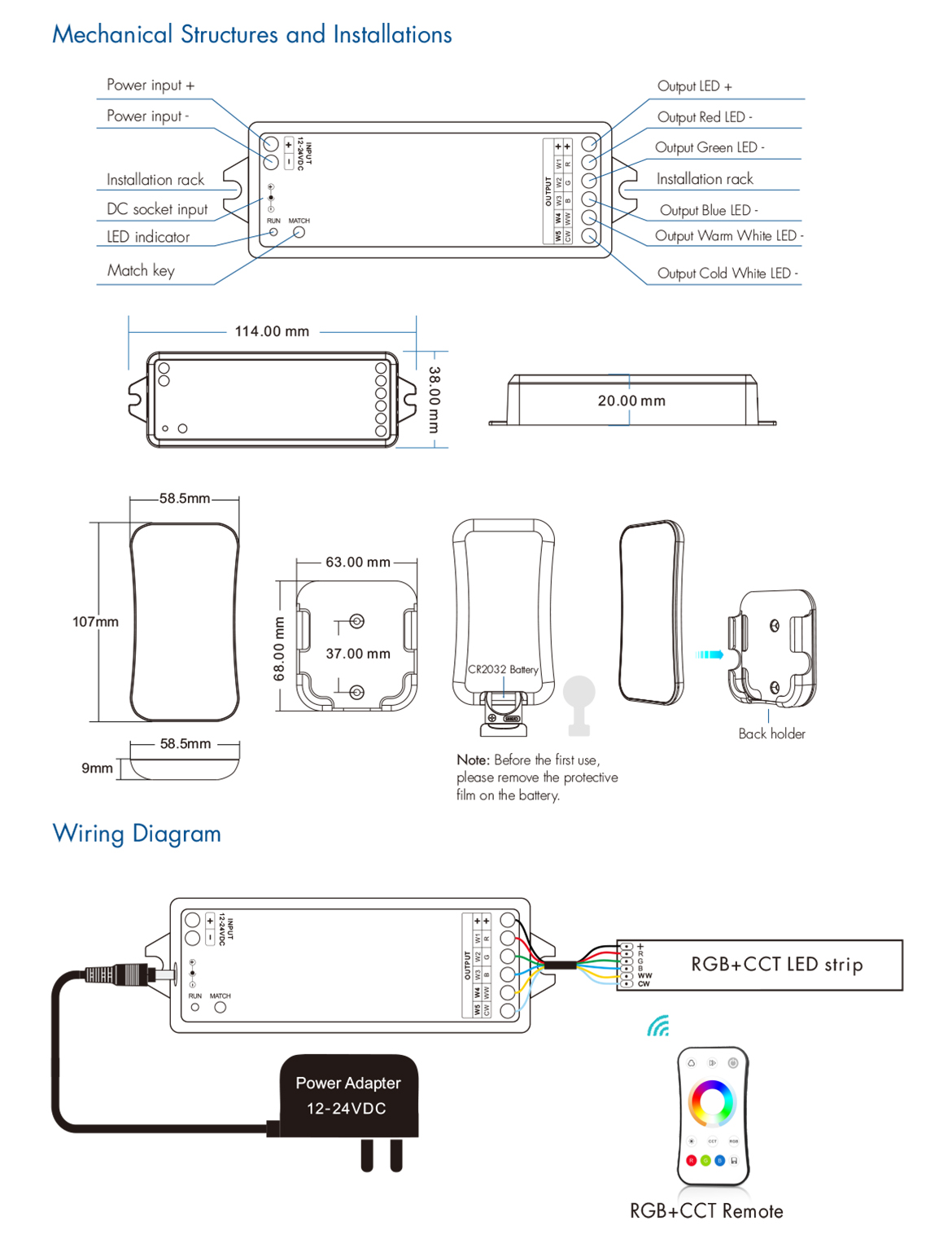

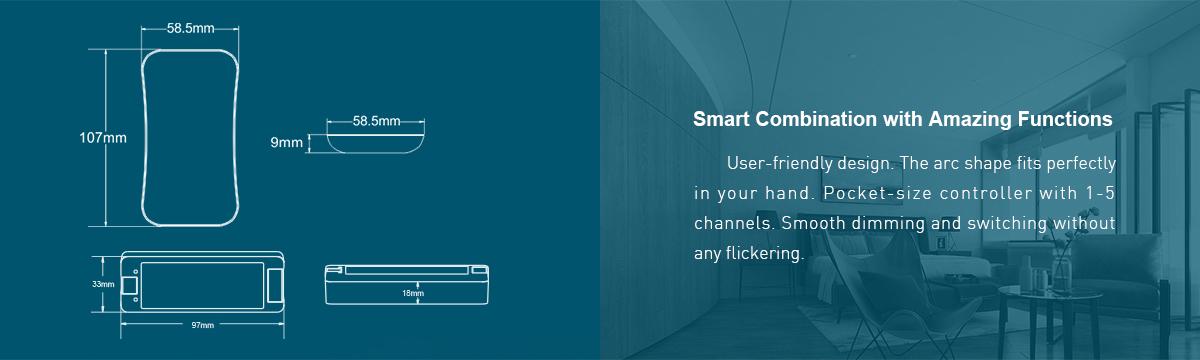

● Size: L107×W58.5×H9mm


LED Receiver

● Input voltage: 12-24VDC

● Output type: PWM constant voltage

● Output current: 5CH, 3A/CH, Total max 15A

● Output power: 180-360W

● Size: L114×W38×H20mm
