4 Zones 2.4G Brightness Remote Control RS1

zoom

Summary

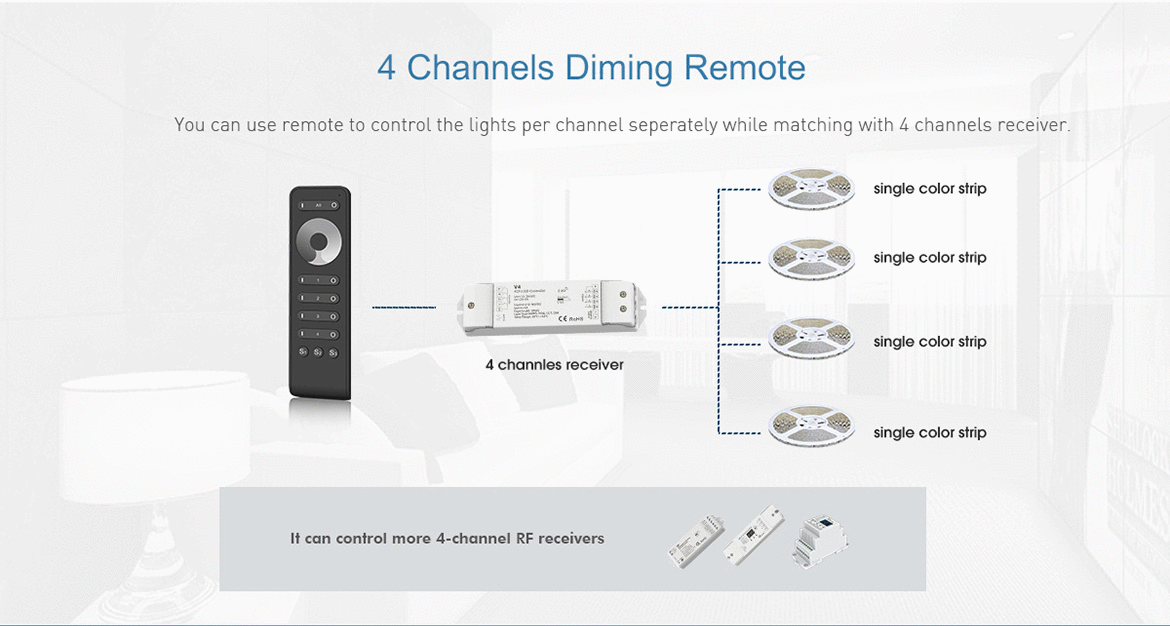

● Apply to single color LED controller, dimming driver or smart lamp.

● Ultra sensitive color adjustment touch wheel.

● Adopt 2.4GHz wireless technology, remote distance up to 30m.

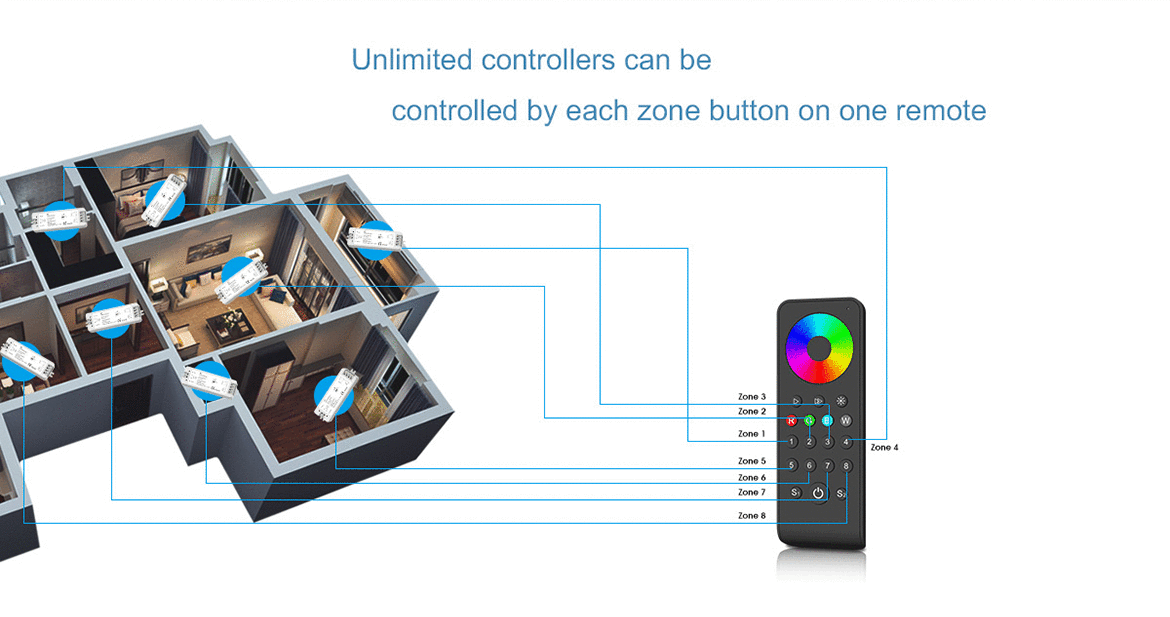

● Each remote can match one or more receiver.

● Battery powered (2 x AAA).

● Operate with LED indicator light.

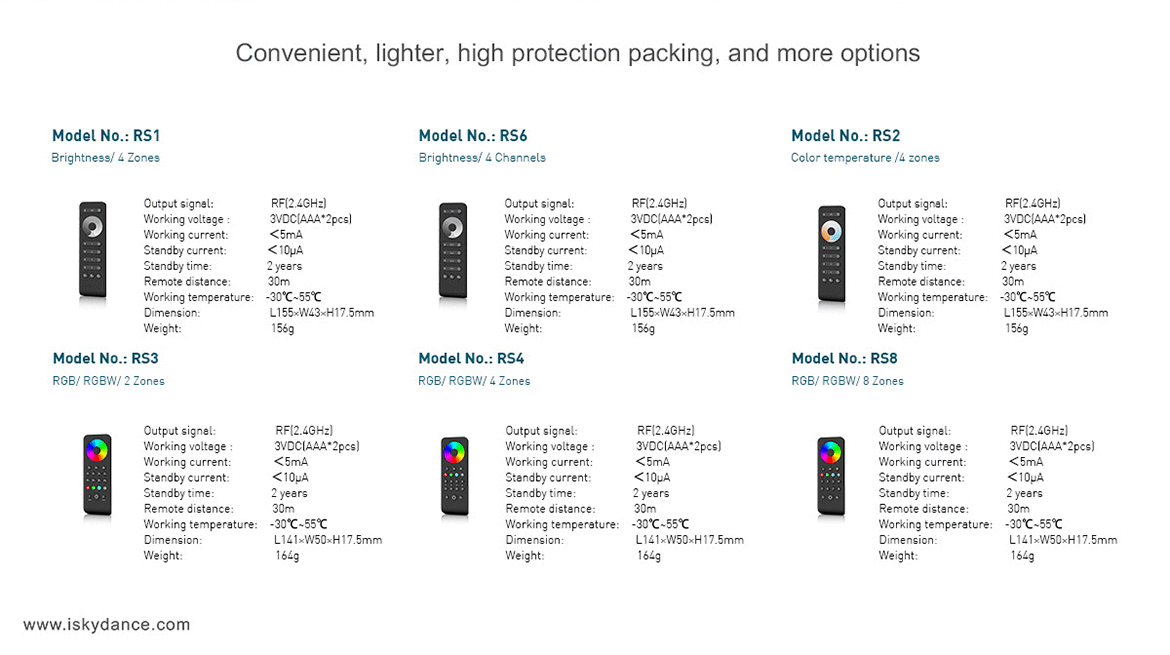

Technical parameter

● Output signal: RF(2.4GHz)

● Working voltage: 3VDC(AAA*2pcs)

● Working current: <20mA

● Standby current: <10μA

● Standby time: 12 months

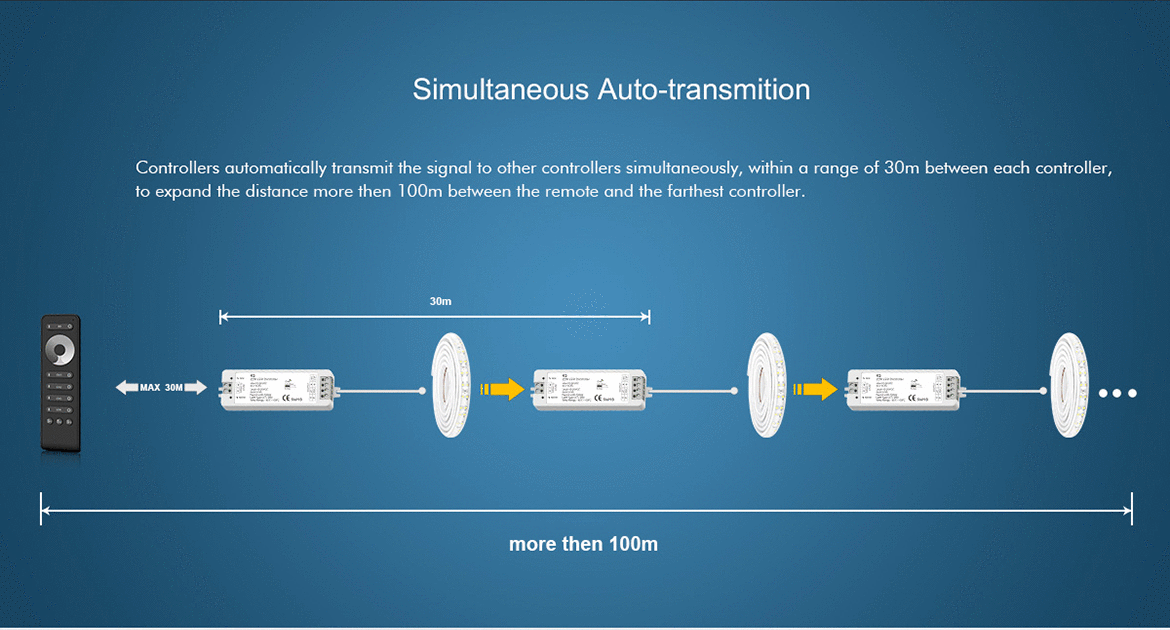

● Remote distance: 30m

● Working temperature: -30℃~55℃

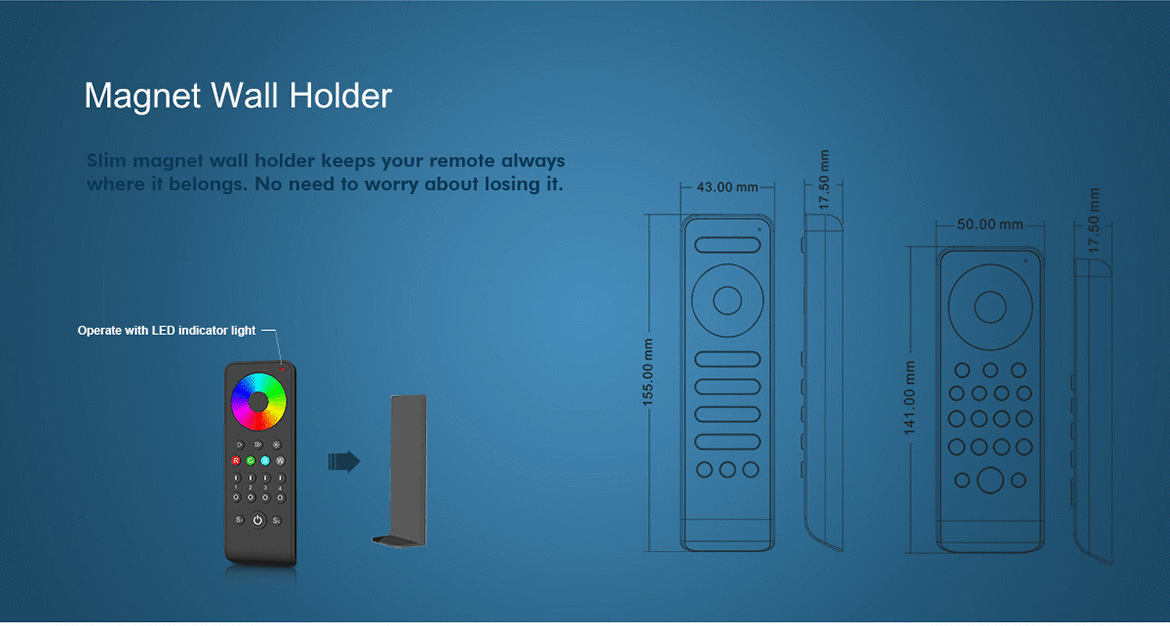

● Dimension: L155×W43×H17.5mm

● Weight: 156g
