Summary

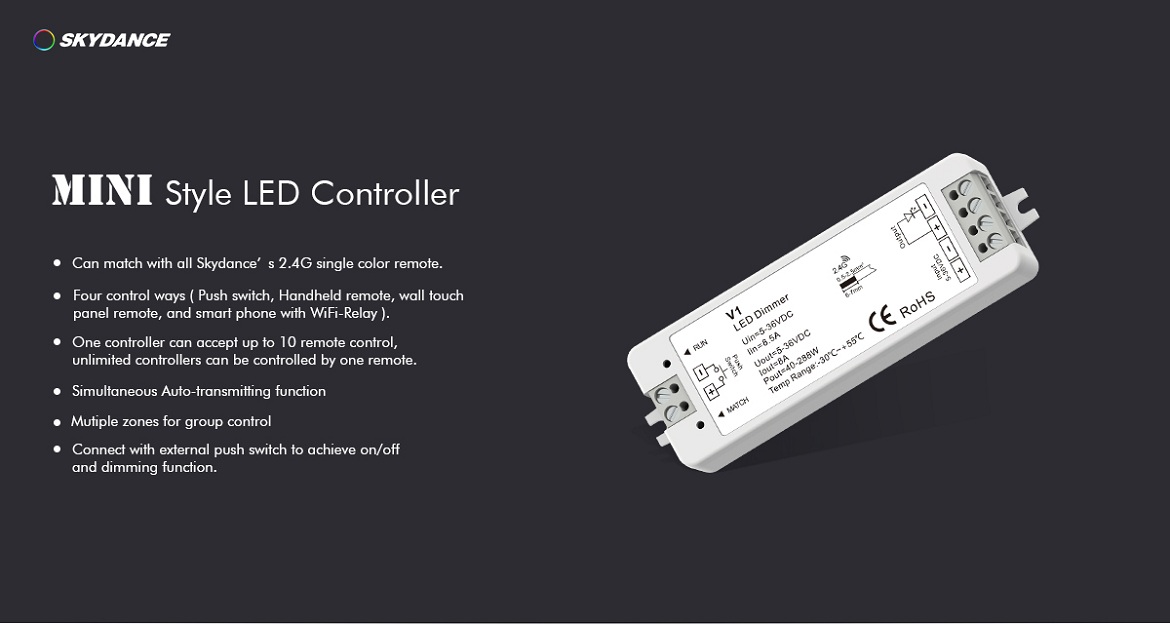

● Mini-style RF dimmer, one channel constant voltage output.

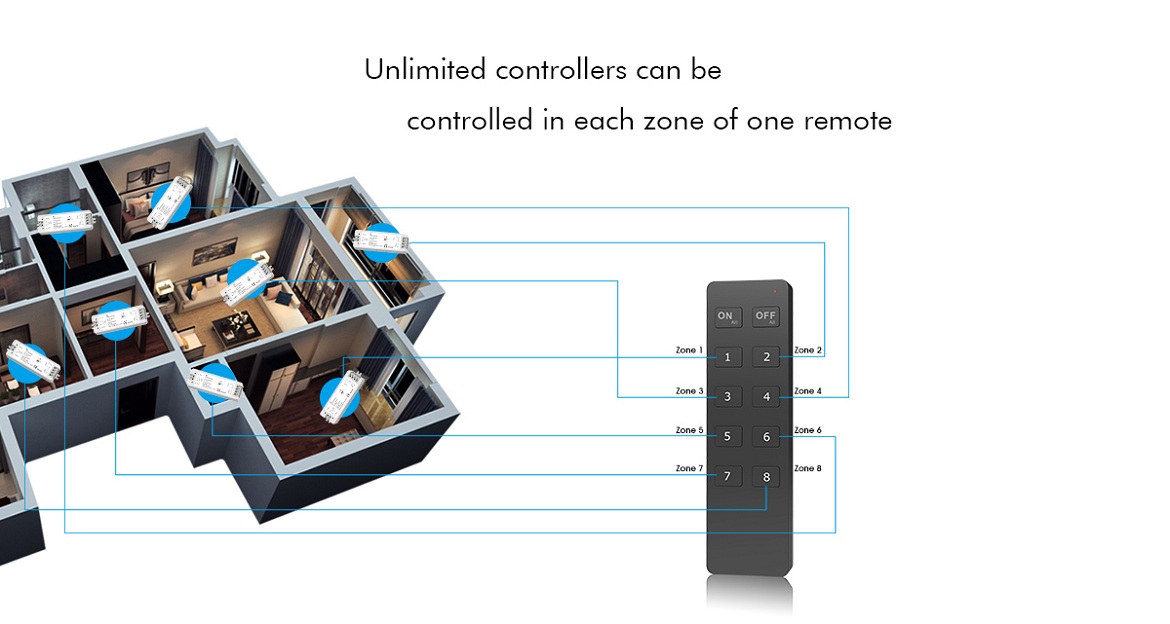

● RF dimmer match with a variety of dimming remote, realize functions of switch and dimming.

● Smooth dimming and switch without any flickering.

● Adopt 2.4GHz wireless technology, remote distance up to 30m.

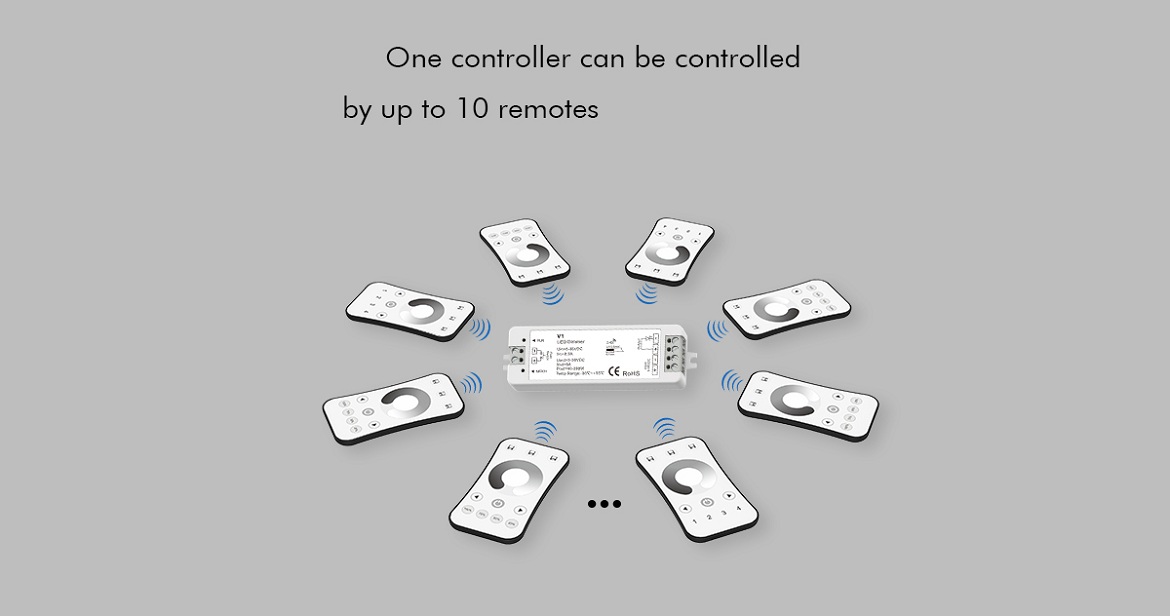

● One RF dimmer can accept up to 10 remote control.

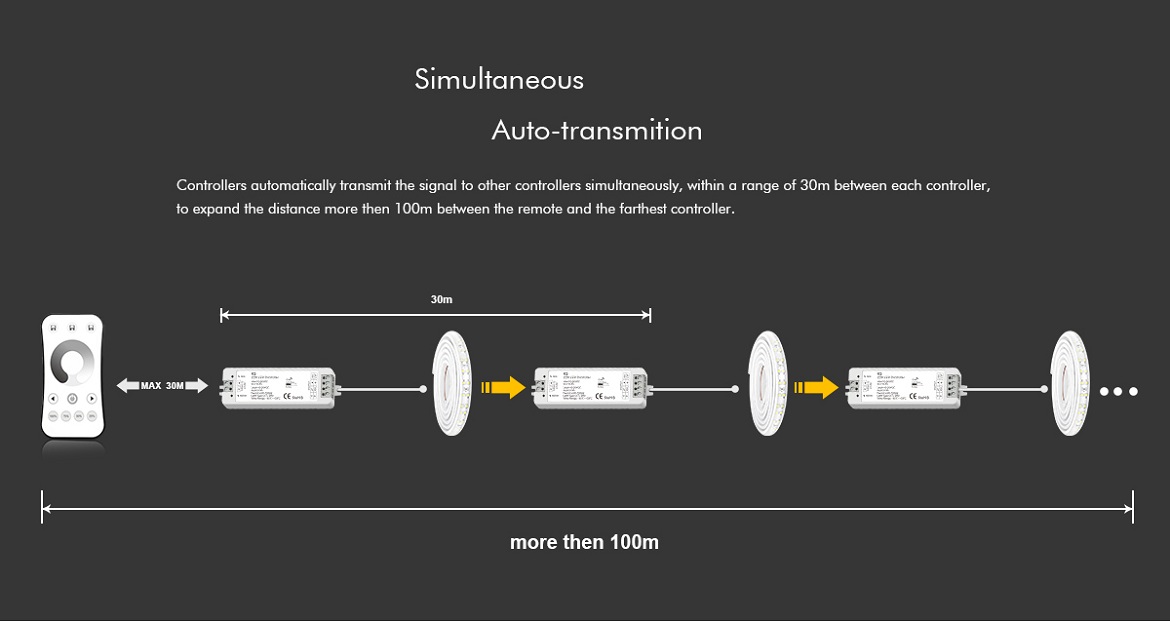

● Auto-transmitting function, one receiver can transmit the signal from the remote to another receiver within 15m, so the remote control distance can be beyond 100m.

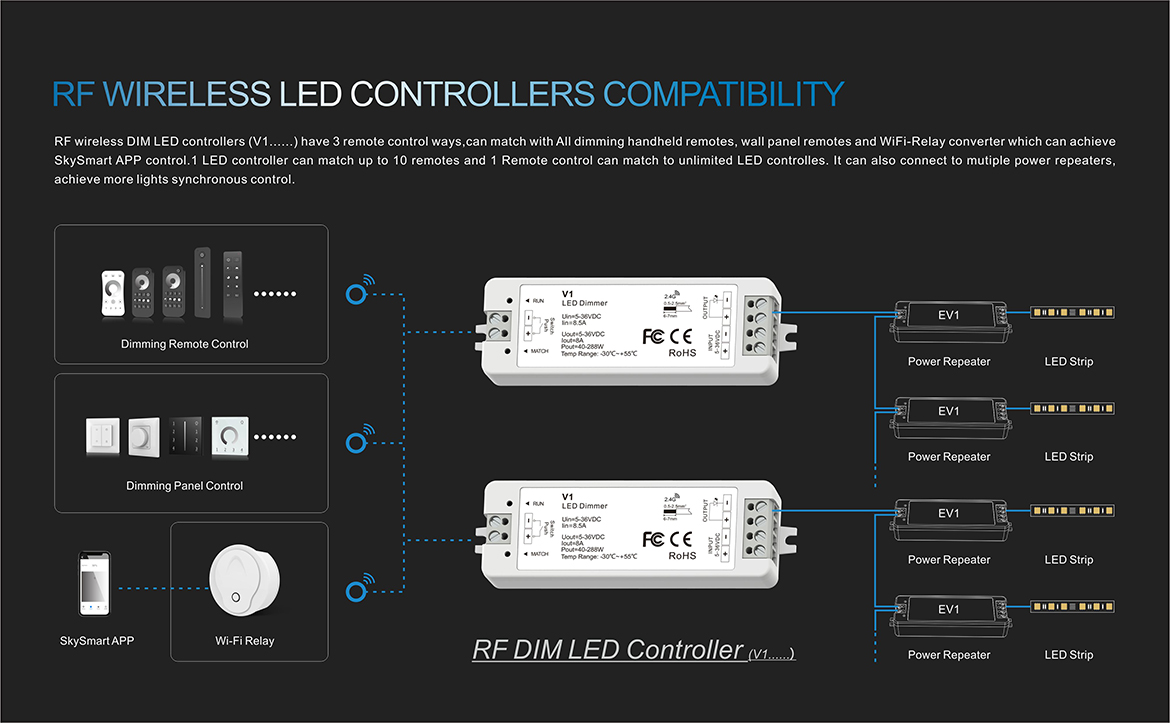

● Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.

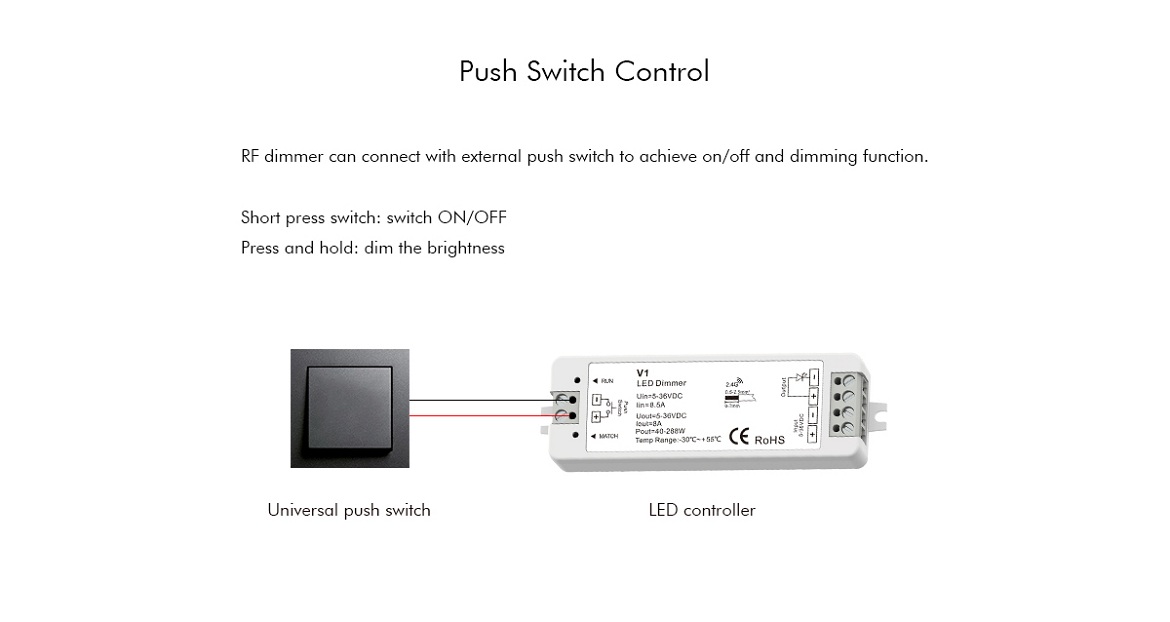

● Can connect with external push switch to achieve on/off and dimming function.

● Work with power repeater to expand output unlimitedly.

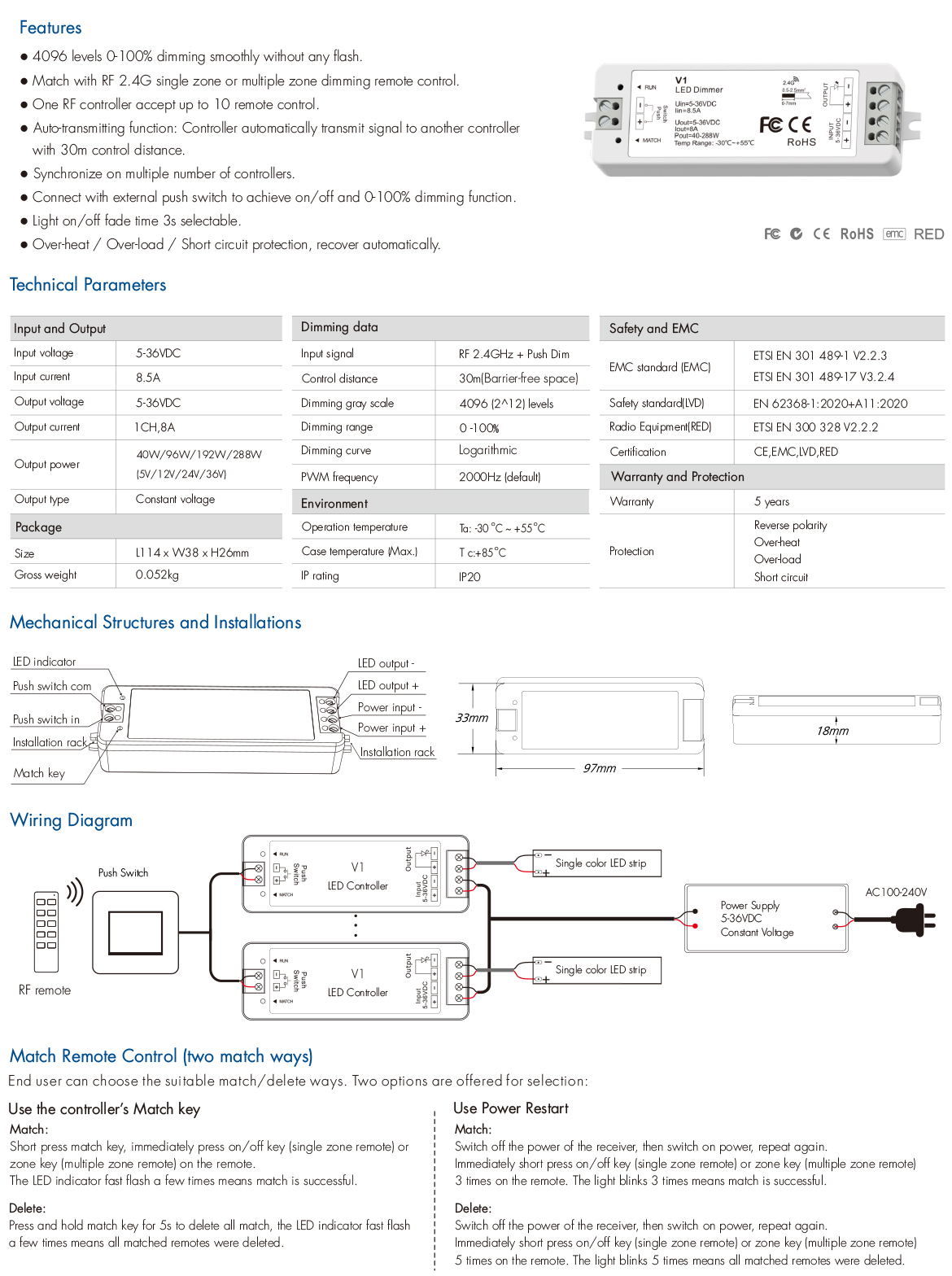

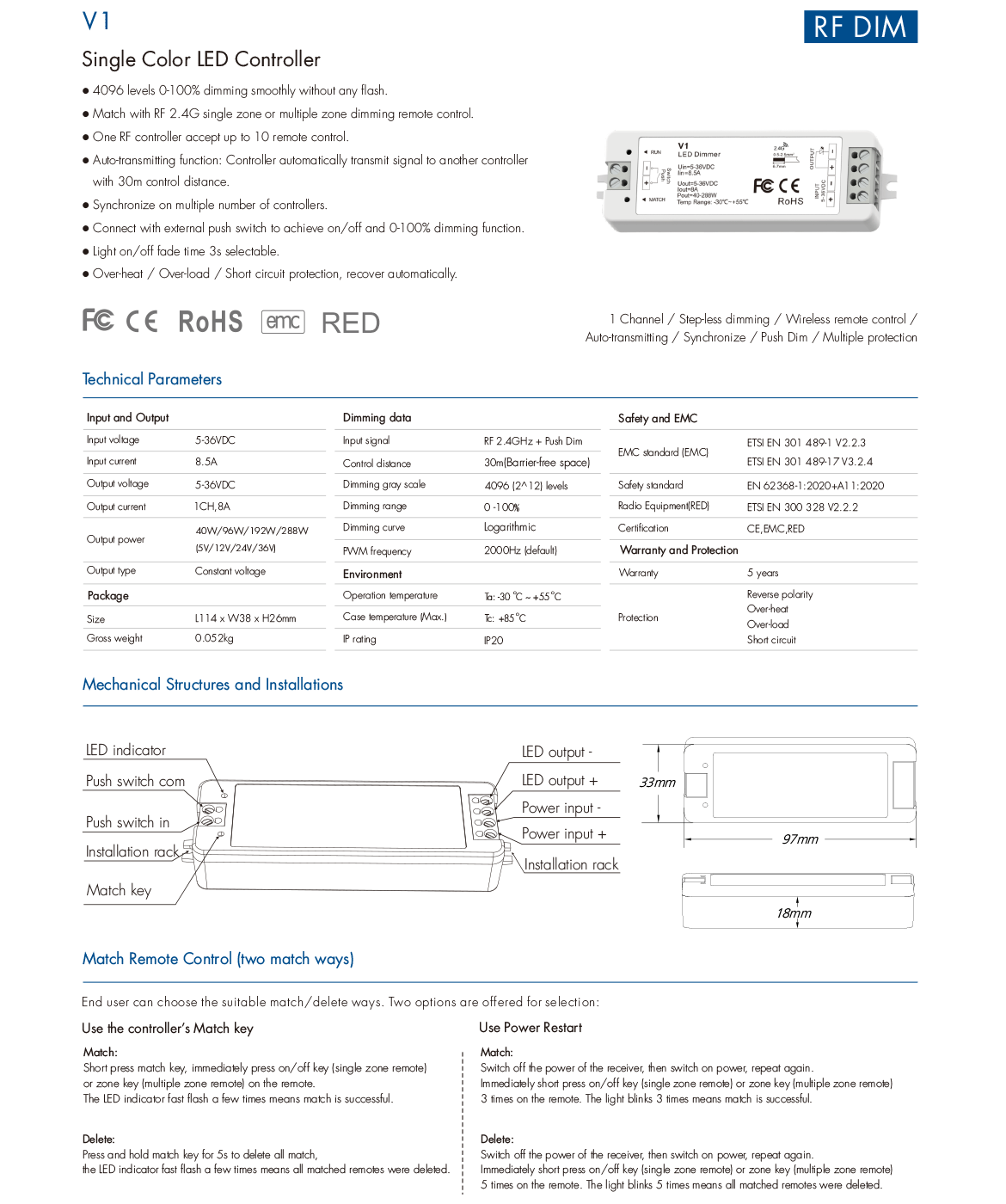

Technical parameter

● Input voltage: 5-36VDC

● Output power: 5V, Max 40W 12V, Max 96W 24V, Max 192W 36V, Max 288W

● Output current: 1CH, 8A/CH

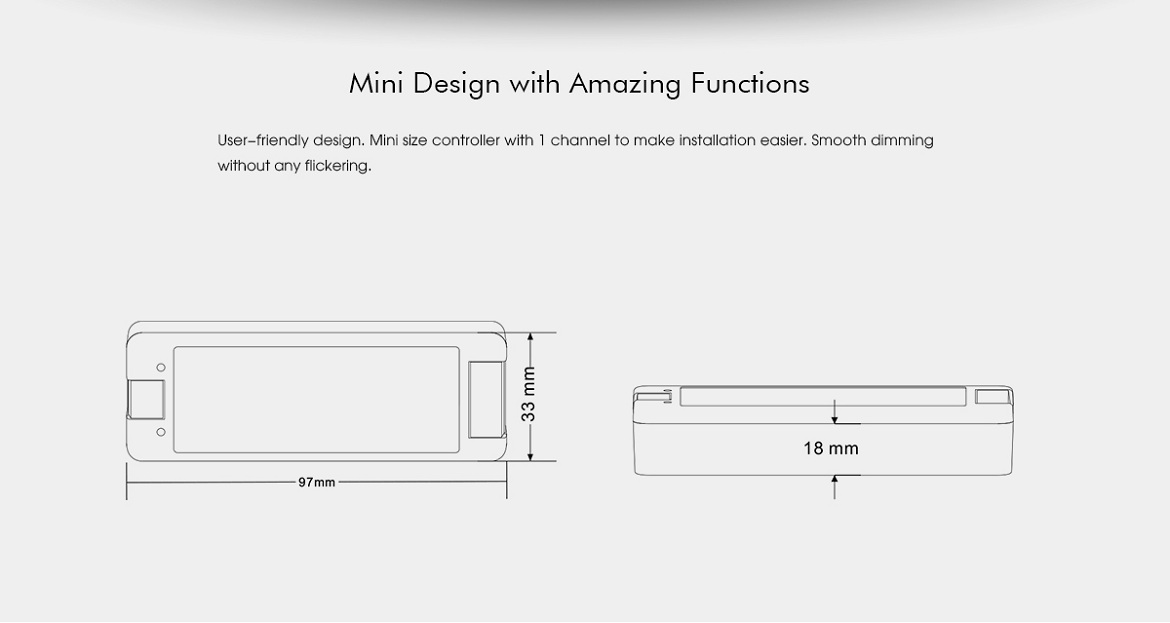

● Size: L97×W33×H18mm

•
