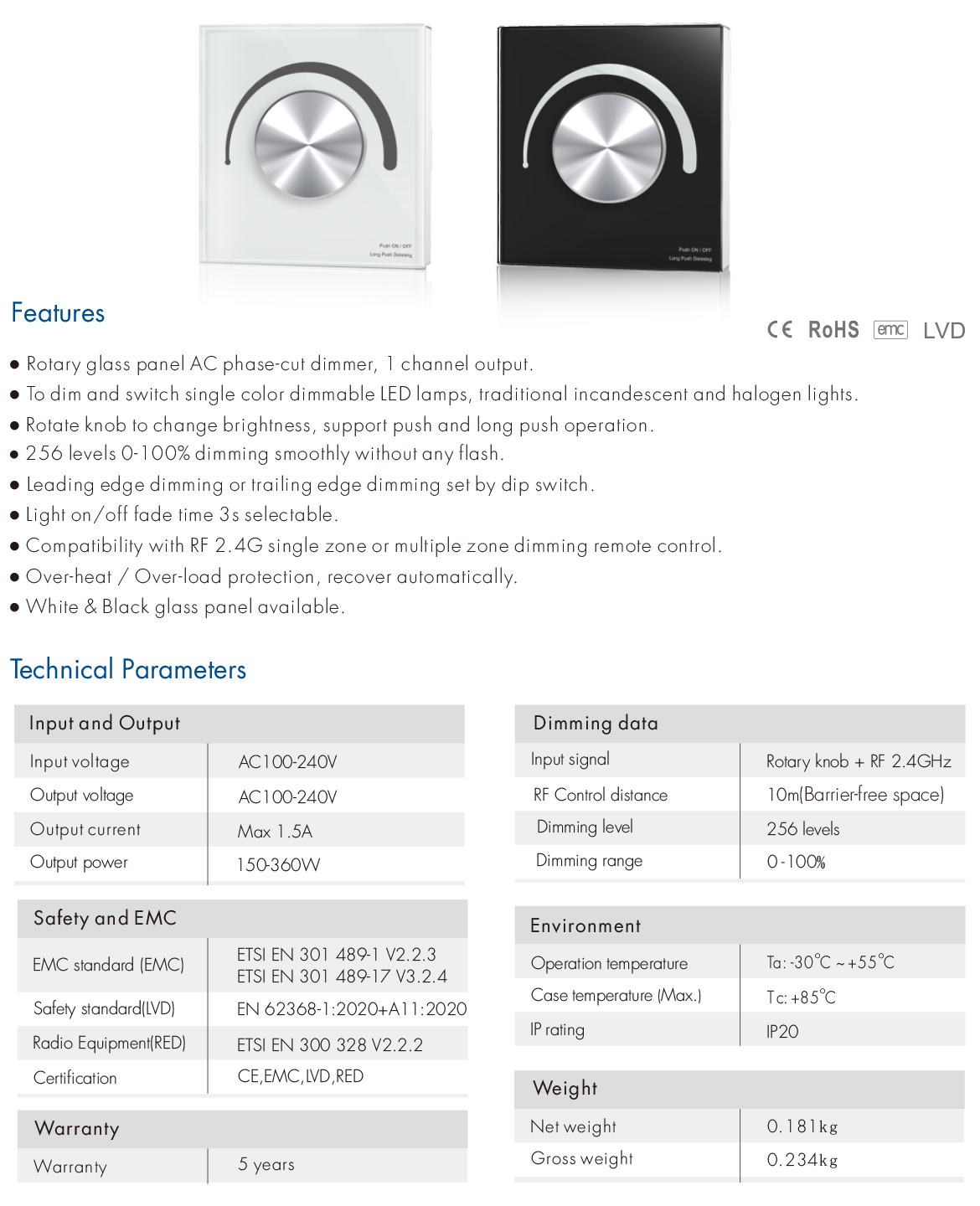

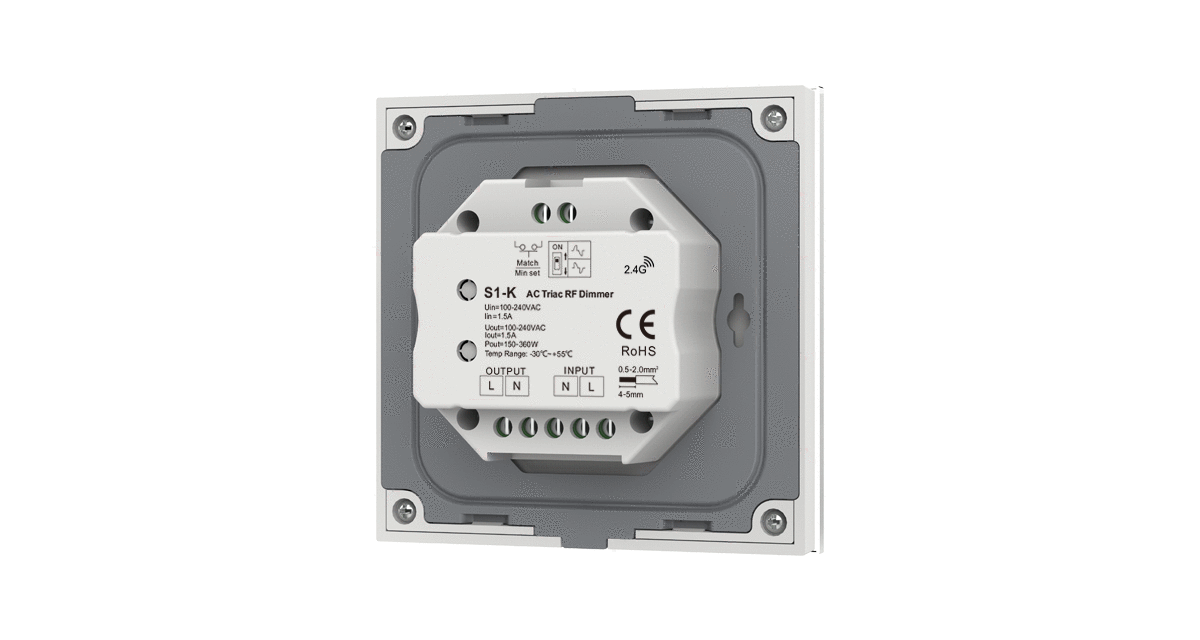

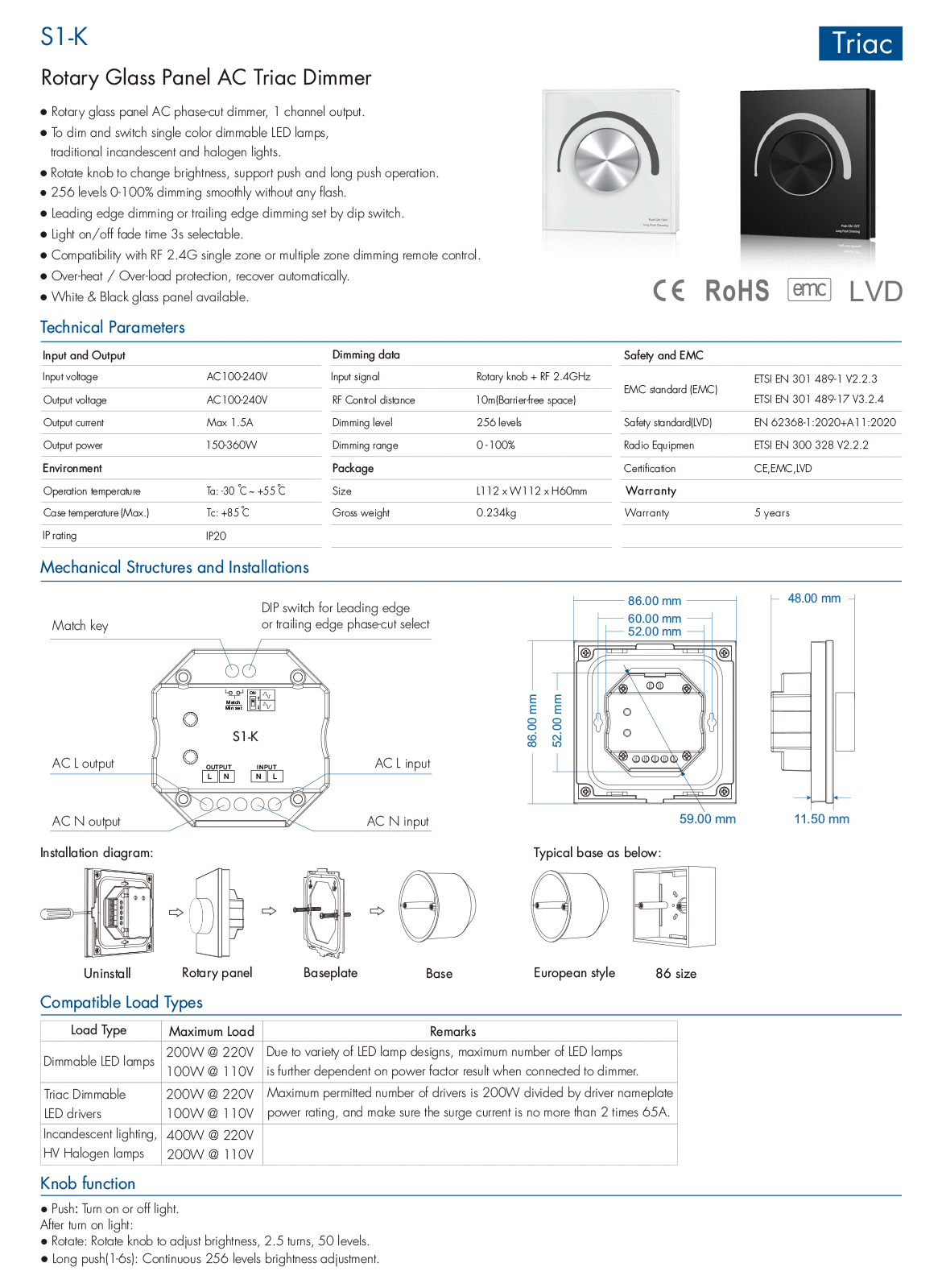

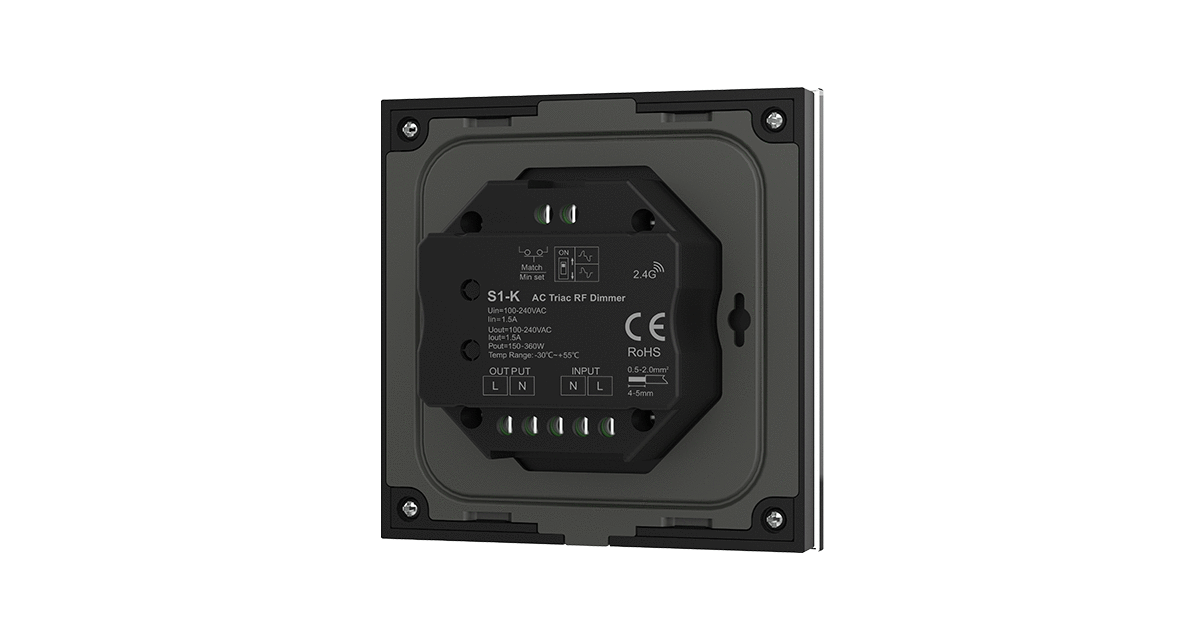

Rotary Panel AC Triac RF Dimmer S1-K


The S1-K is an innovative AC phase-cut dimmer with both RF control and rotary manual control. The AC dimmer is designed with 100-240VAC wide input and output, 1 channel output, both triac dimmable and mosfet dimmable. The RF triac dimmer can be compatible with a variety of single color RF series remote controls. While working with a WiFi-Relay controller, the dimmer can be WiFi controlled via APP installed on IOS or Android system.


● Rotary glass panel AC phase-cut dimmer, 1 channel output.

● To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.

● Rotate knob to change brightness, support push and long push operation.

● Smooth dimming and switch without any flickering.

● Leading edge dimming or trailing edge dimming set by dip switch.

● Great compatibility with a variety of dimming RF remote.

● Adopt 2.4GHz wireless technology, remote distance up to 30m.

● Work with WiFi-relay controller after install APP on IOS and Android system.
