2 Zones 2.4G RGB/RGBW Remote Control RS3



● Apply to RGB or RGBW LED controller, dimming driver or smart lamp.

● Ultra sensitive color adjustment touch wheel.

● Adopt 2.4GHz wireless technology, remote distance up to 30m.

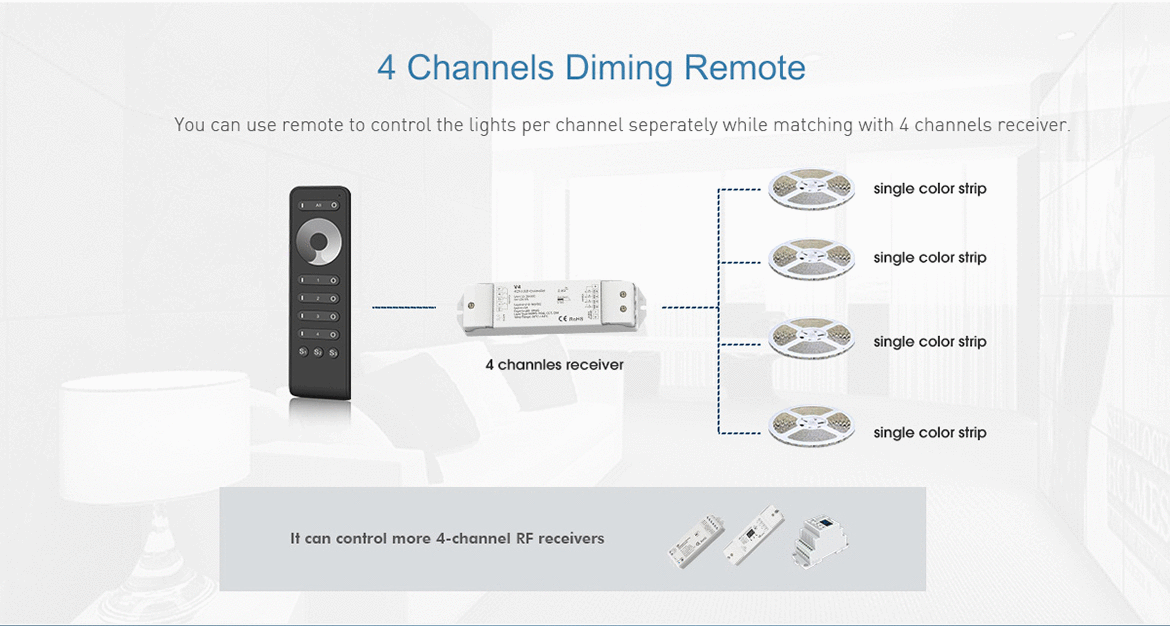

● Each remote can match one or more receiver.

● Battery powered (2 x AAA).

● Operate with LED indicator light.

Technical parameter

● Output signal: RF(2.4GHz)

● Working voltage: 3VDC(AAA*2pcs)

● Working current: <20mA

● Standby current: <10μA

● Standby time: 12 months

● Remote distance: 30m

● Working temperature: -30℃~55℃

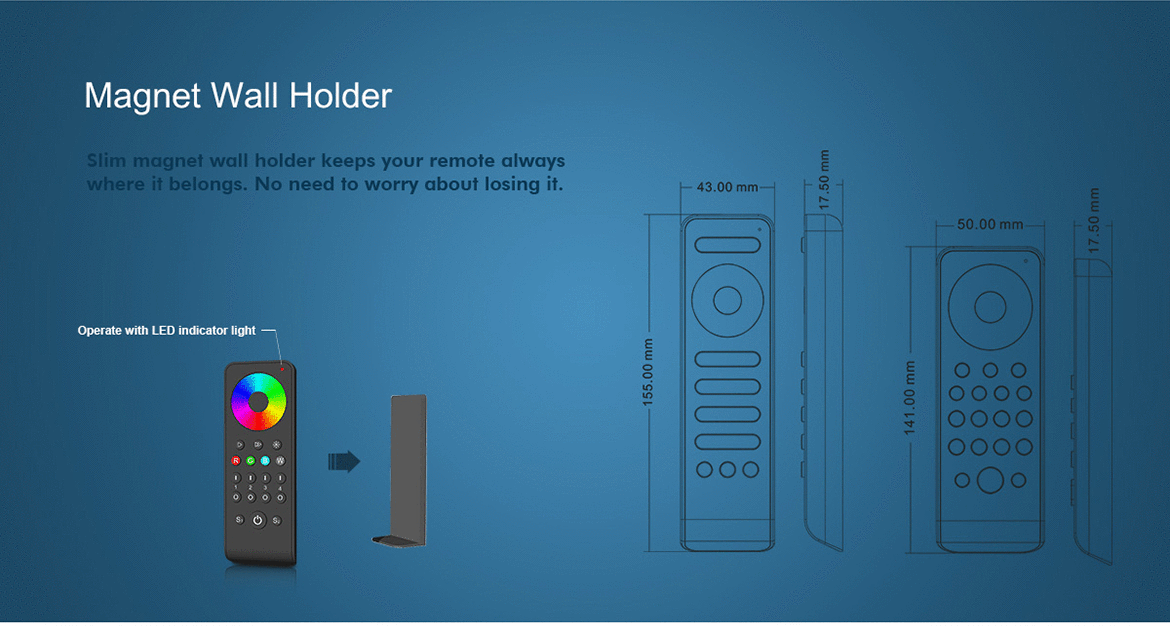

● Dimension: L141×W50×H17.5mm

● Weight: 164g


● When turn on light, the indicator display blue. when turn off light, the indicator display red.

● When touch the color wheel, the indicator will display the same color.

● When press or touch operation is invalid (If the light is off), the indicator display red.

● To extend battery life, no touch or press key operation after a few seconds, the touch wheel will enter sleep state, you need press any key to make touch wheel quit sleep state.
