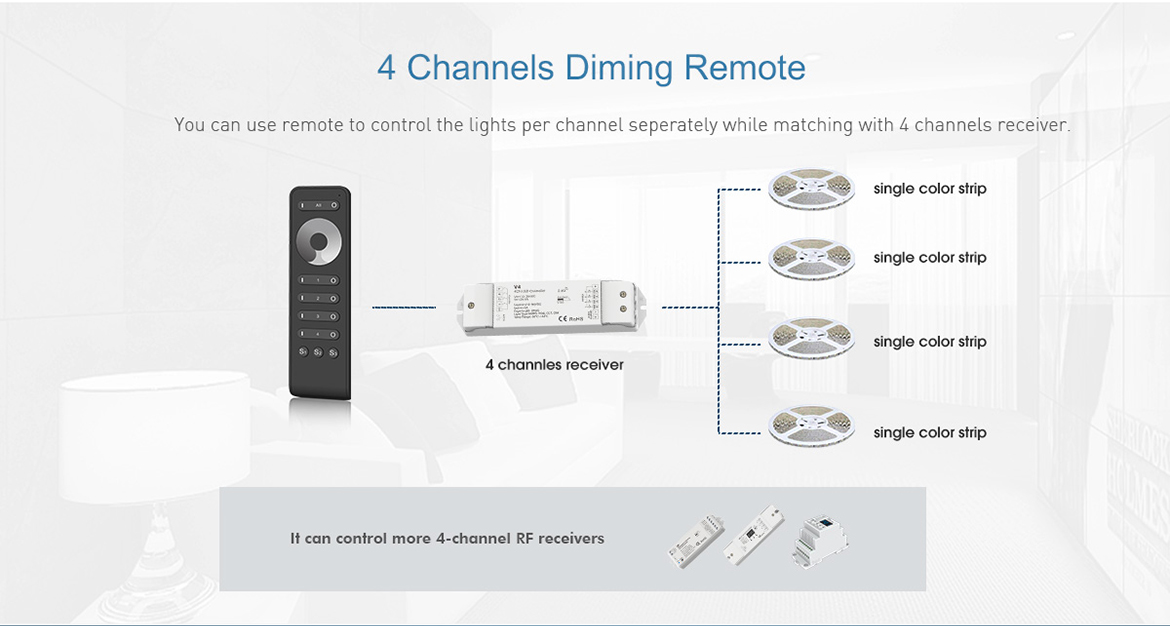

4 Channels 2.4G Brightness Remote Control RS6

zoom

Summary

 ● Apply to single color LED controller, dimming driver or smart lamp.

 ● Ultra sensitive color adjustment touch wheel.

 ● Adopt 2.4GHz wireless technology, remote distance up to 30m.

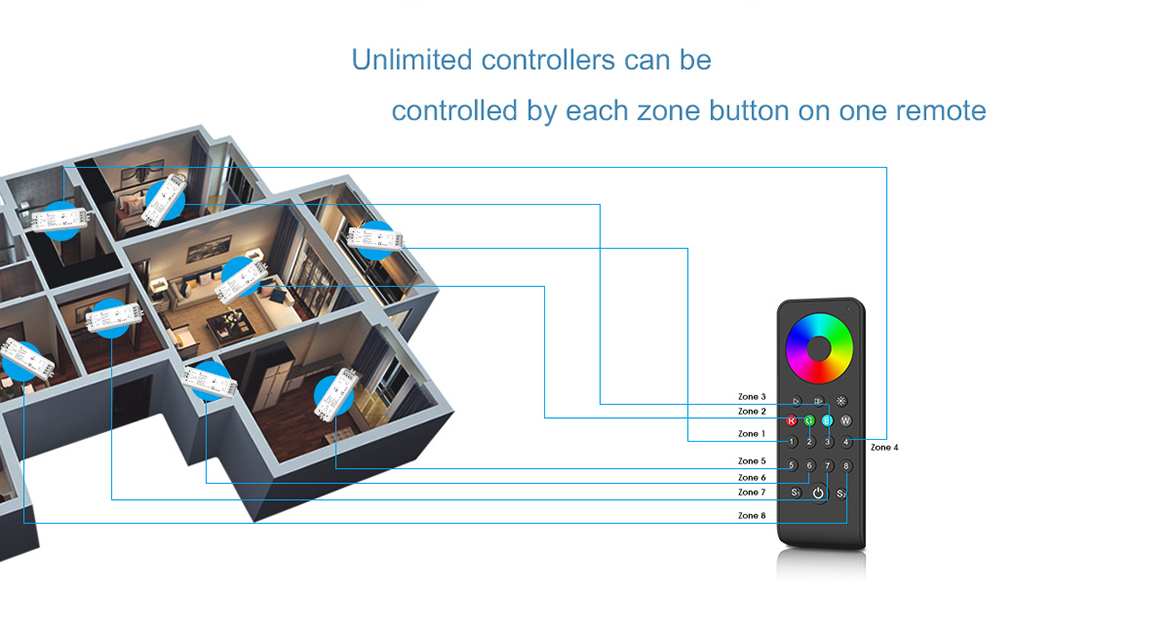

 ● Each remote can match one or more receiver.

 ● Battery powered (2 x AAA).

 ● Operate with LED indicator light.

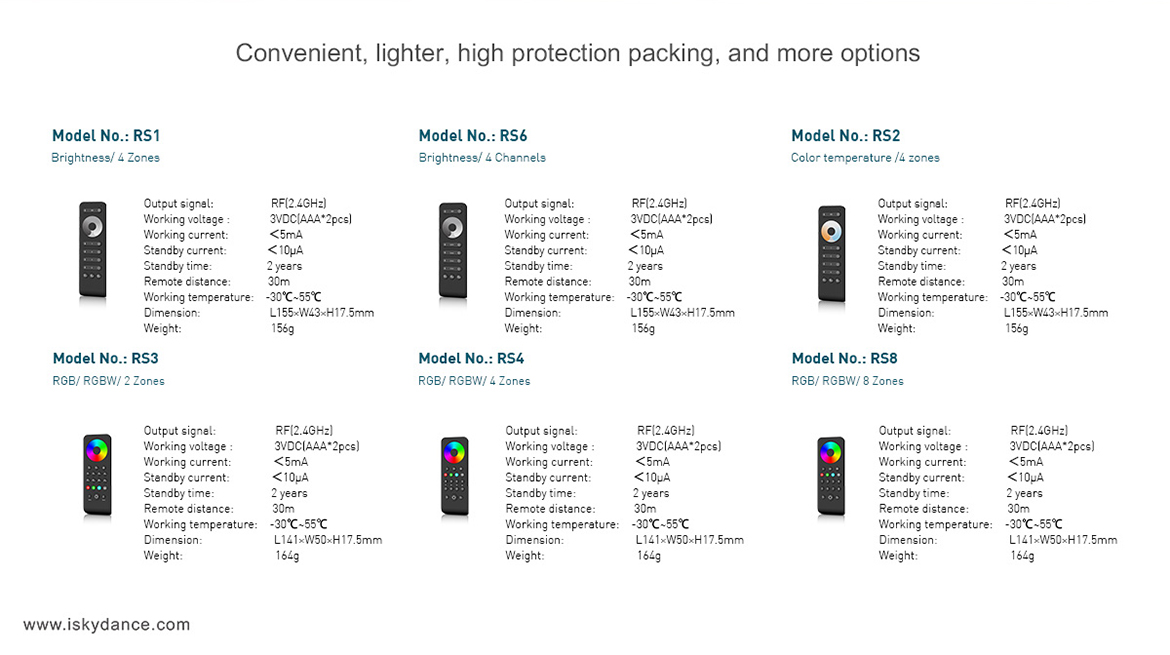

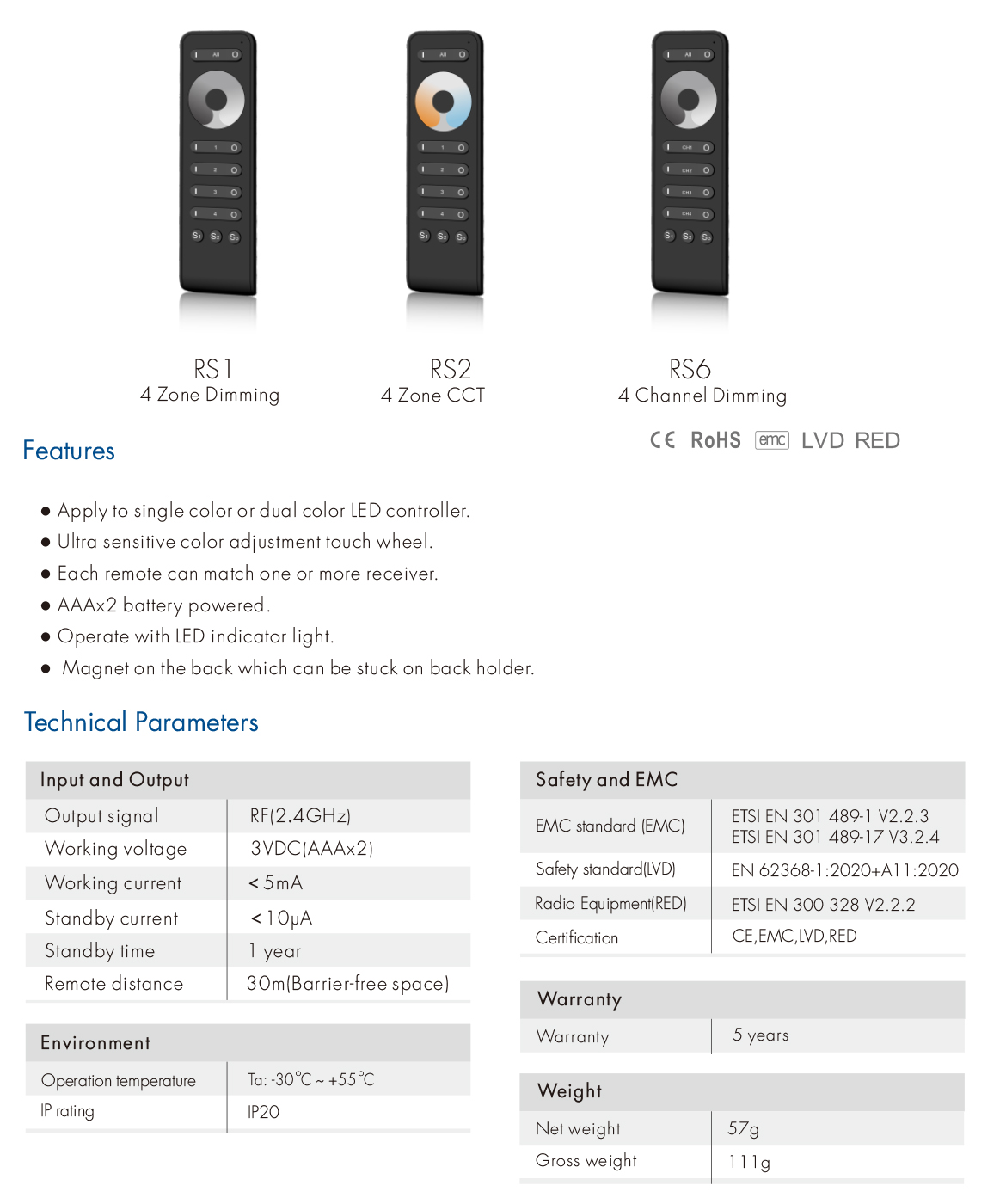

 Technical parameter

 ● Output signal: RF(2.4GHz)

 ● Working voltage: 3VDC(AAA*2pcs)

 ● Working current: <20mA

 ● Standby current: <10μA

 ● Standby time: 12 months

 ● Remote distance: 30m

 ● Working temperature: -30℃~55℃

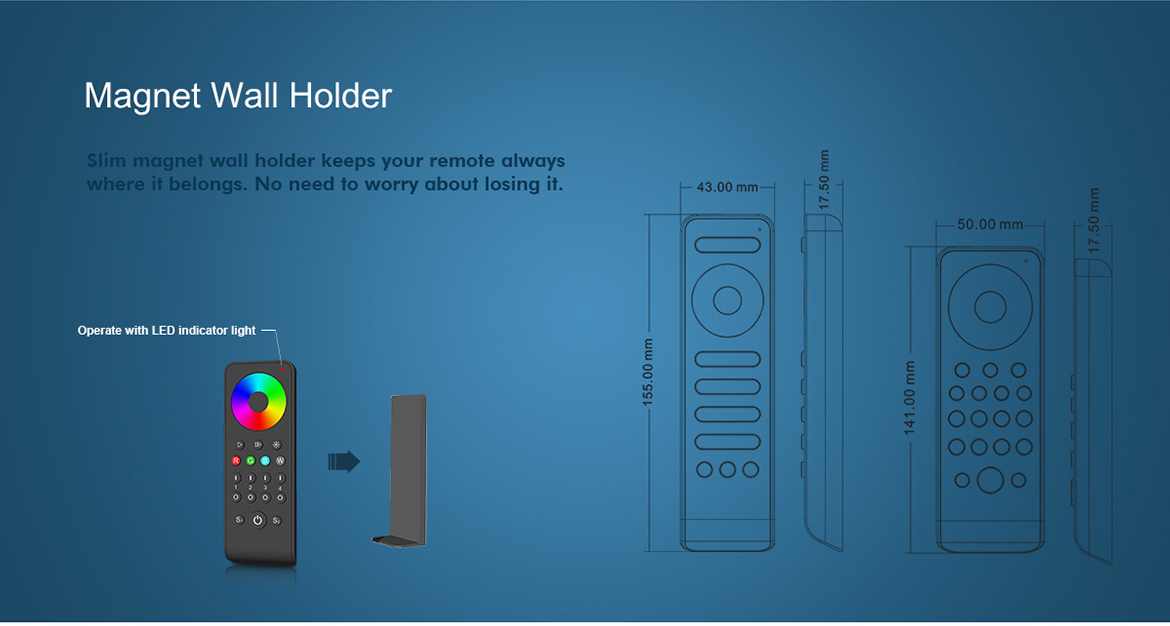

 ● Dimension: L155×W43×H17.5mm

 ● Weight: 156g
