4CH Constant Voltage DMX512 & RDM Decoder D4-L

zoom

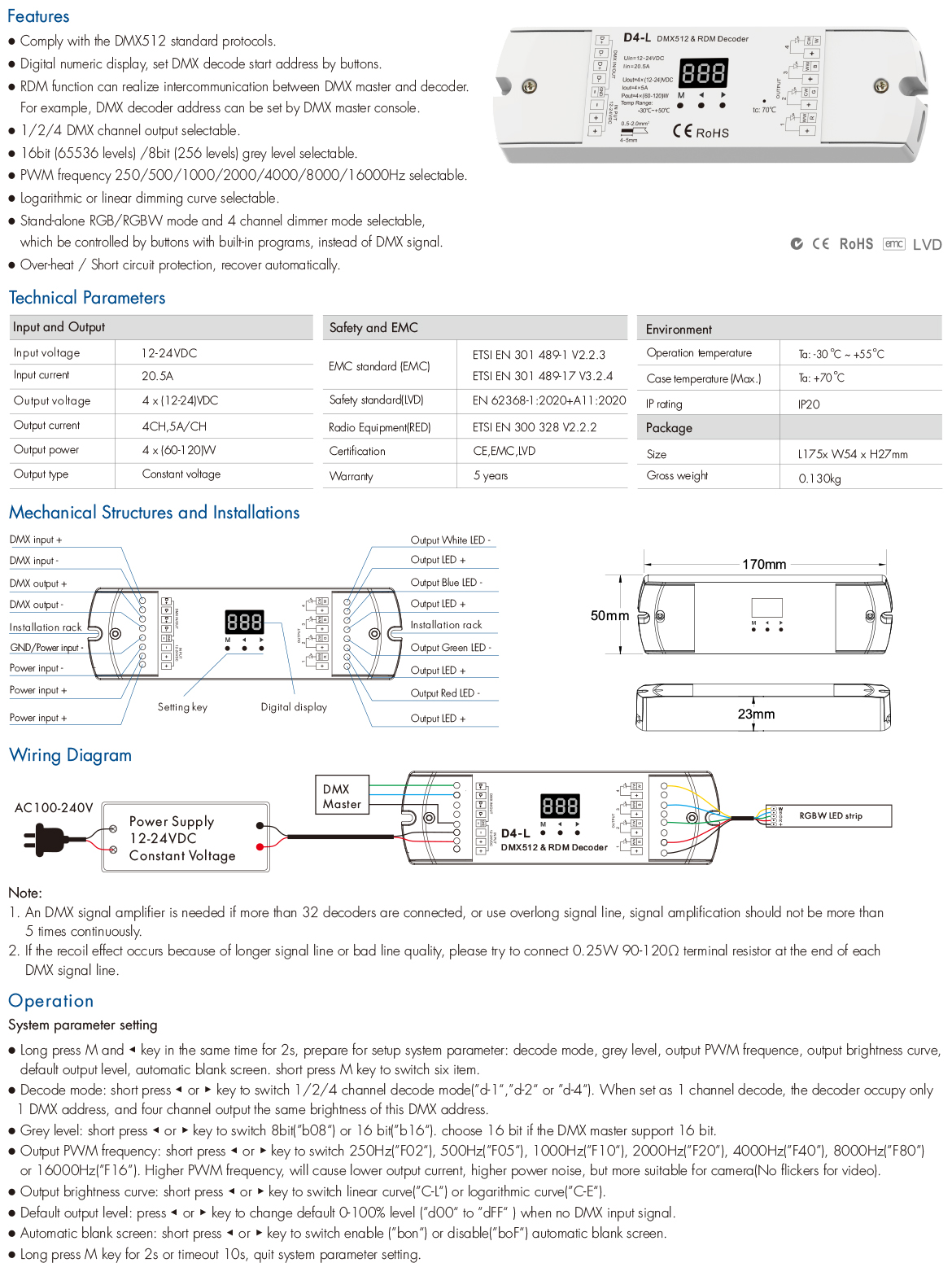

  • Features
  • Specifications
  • User Manual
  • Related products
Technical Parameters
● Input voltage: 12-24VDC
● Output type: PWM constant Voltage
● Output current: 4CH, 5A/CH
● Output power: 240-480W
● Decode number: 1/2/4 DMX Channel
● Dimming range: 0-100%
● Working temperature: -30℃~55℃
● Product size: L170×W50×H23mm
● Packing size: L172×W53×H27(mm)
● Net weight: 125g

Summary
● DMX512 & RDM decoder, four channel constant voltage output, 5A per channel.
● Comply with the latest DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2006 ESTA Standard) standard protocols.
● RDM bi-directional communication function, can realize intercommunication between DMX master and decoder. for example, you can set DMX decoder address by DMX master console.
● DMX address can be set easily and shown on the digital numeric display.
● Compatial with our DMX masters such as T12,T13,T15,T16,T17, and any other high quality DMX master.
● It can also work as stand-alone RGB/RGBW controller, have 30 kinds dynamic mode,adjustable speed and brightness.
● It can also work as stand-alone 4 channel dimming controller, each channel adjust brightness independently, and save up to 8 groups brightness.
● Work with power repeater to expand output unlimitedly.
