1CH*15A CV Triac Dimmer V1-S

zoom

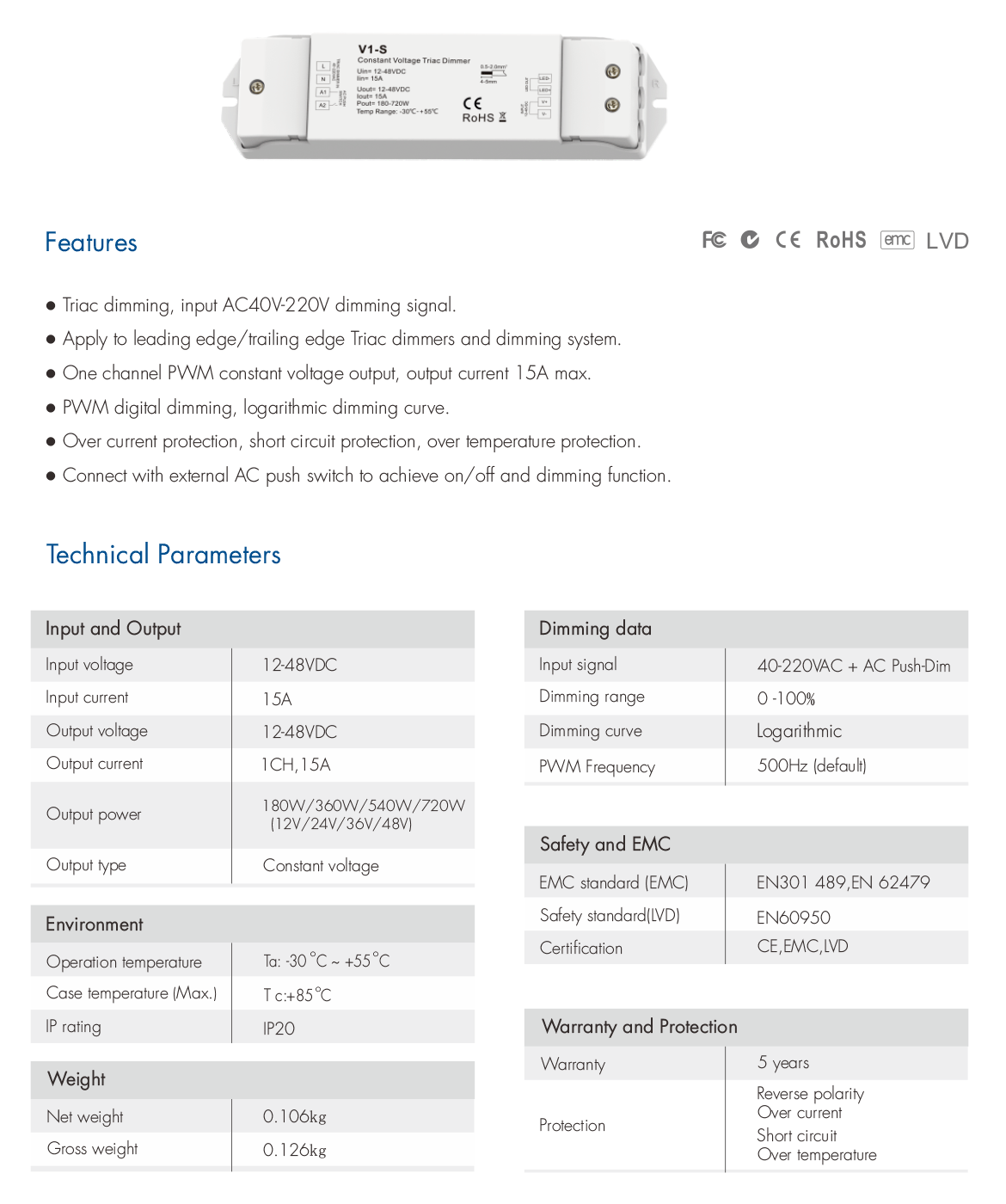

Technical Parameters:

● Input voltage: 12-48VDC

● Dimming voltage: 40-220VAC

● Output current: 15A max

● Output power: 12V: 180W max 24V: 360W max  36V: 540W max 48V: 720W max

● Working temperature: -30℃~55℃

● Product size: L175×W45×H27mm


Summary:

● Triac dimming, input AC40V-220V dimming signal.

● Support all Triac dimming system.

● One channel PWM constant voltage output, output current 15A max.

● Smooth dimming curve without any flicker.

● 0-100% brightness adjustment.

● Over current protection, short circuit protection, over temperature protection.

● LED indicate current state.
