RF DIM Panel Remote Control

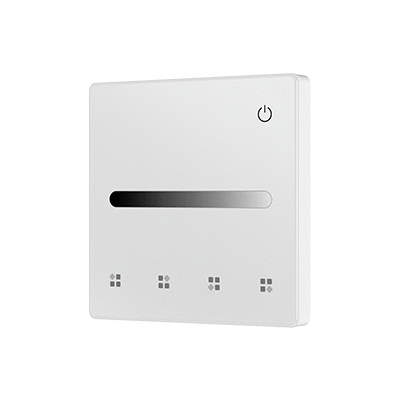

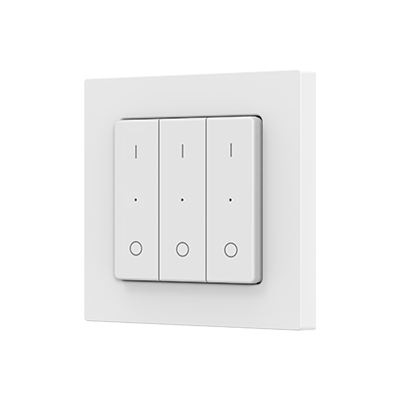

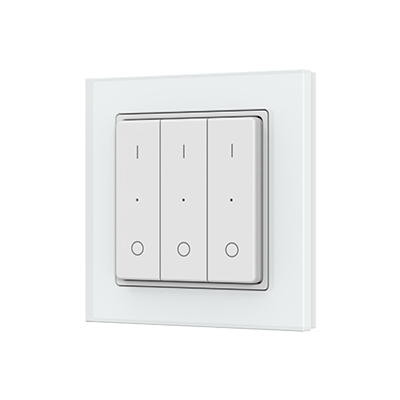

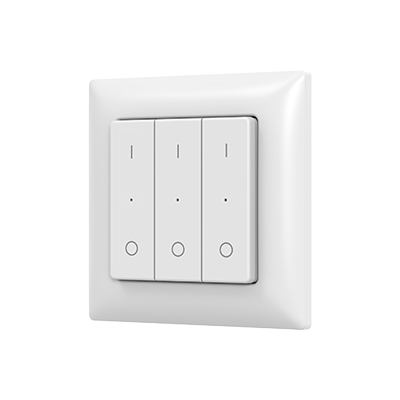

The dimming panel remote control can be divided into single zone, 2 zone, 3 zone and 4zone,  including button panel, knob panel and touch glass panel (white & black glass), and high voltage AC100-240V, low voltage DC12-24V, 7#AAA battery or button battery powered, providing customers with a variety of choices.

1. Used for single color LED lights to realize on/off, brightness adjustment, group partition and scene functions.

2. Wireless 2.4G, remote control distance is 30 meters, control distances of several hundred meters are achieved by cascades between controllers.

3. The battery-powered panel remote has a standby time of six months to two years, depending on how often it is used.

4. Each remote can theoretically be matched with an infinite number of controllers. Each zone of a multi-zone remote can also be matched with an unlimited number of controllers.

5. Each controller can be matched with 1-10 remote controls. A controller can be matched in different zones of a remote control.

6. All dimming panel controllers (including constant voltage controller, DMX512 master,Triac dimmer, 0/1-10V dimmer)can be used as a remote control other RF controller, can also be used as a RF controller to accept other remote control.
