5CH 3A Constant Voltage RF 2.4G Receiver V5-M

zoom
  • Features
  • Specifications
  • User Manual
  • Related products

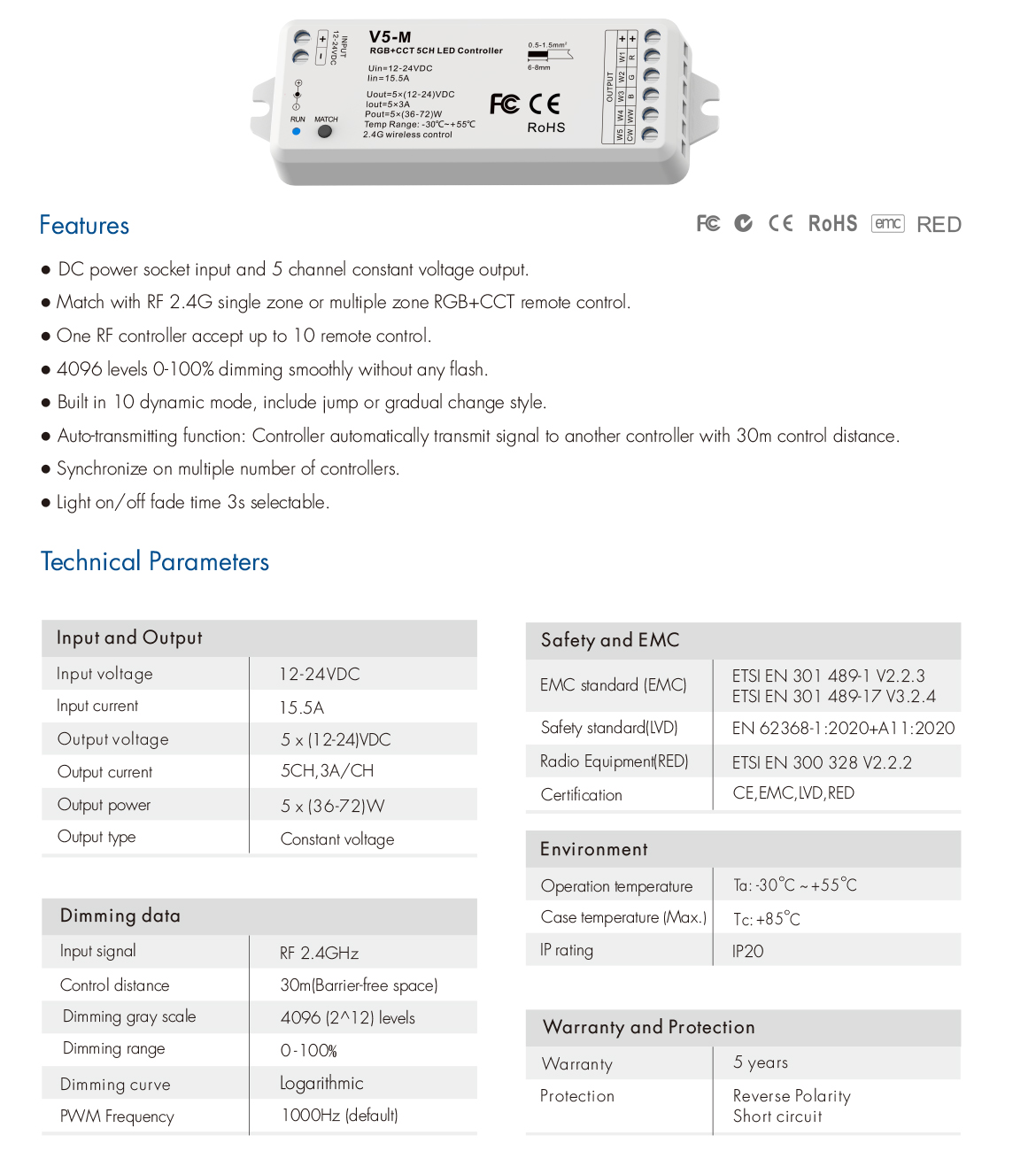

Technical parameter

● Input voltage: 12-24VDC

● Output type: PWM constant voltage

● Output current: 5CH, 3A/CH, Total max 15A

● Output power: 180-360W

● Grey levels: 4096/CH

● Dimming range: 0-100%

● Remote distance: 30m

● Working temperature: -30℃~55℃

● Product size: L114×W38×H20mm

● Net weight: 53g


Summary

● Mini style LED controller with DC power socket input and 5 channel constant voltage output.

● Full compatibility with a variety of RGB+CCT remote.

● Smooth dimming and switch without any flickering.

● Built in 10 RGB change mode, include jump or gradual change style, adjustable speed.

● Adopt 2.4GHz wireless technology, remote distance up to 30m, can accept up to 10 remote control.

● Auto-transmitting function, one receiver can transmit the signal from the remote to another receiver within 15m, so the remote control distance can be beyond 100m.

● Auto-synchronization function, different receivers can work synchronously when they are controlled by the same remote, under same dynamic mode and same speed.

● Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.

● User can customize own RGB change mode list by APP for advanced function.

● Work with power repeater to expand output unlimitedly.
